| X-Axis | ||
| Y-Axis | ||
| Z-Axis | ||
| Power | 30 hp | 22.4 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| # ATC | ||
| Taper | 50 | 50 |
| Table-W | 27.5" | 698.5 mm |
| Table-L | 83" | 2,108.2 mm |
| # Axis | ||
| Weight | 28000 | 28000 |

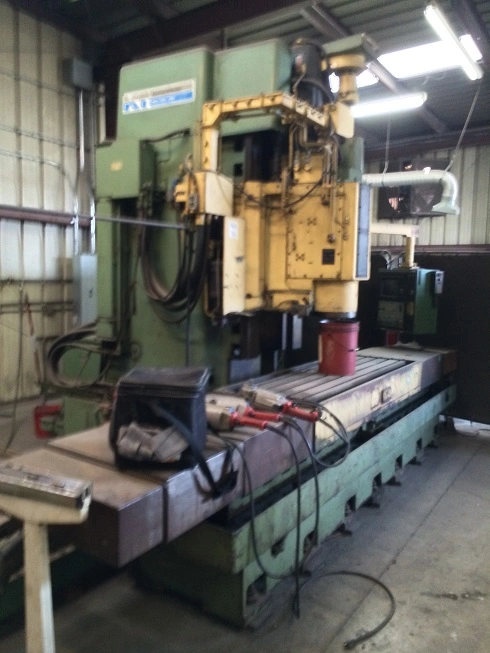

KEARNEY AND TRECKER DATA MILL 700 CNC VERTICAL CNC MILL
Specifications:
Table size – 83" x 27 1/2"
50 taper spindle
Spindle HP-30
Power draw bar on spindle (.5 hp)
EQUIPPED WITH:
GE/Fanuc 15M control
RS-232 port and Fanuc tape reader
Fanuc drive motors (model 205/3000)
Box ways on all axis
Way covers
Auto way oilier
Approximate weight 28,000 lbs
Note:
Machine can write and run programs but not save them to the hard drive once powered off.
