| X-Axis | 40.1" | 1,018.5 mm |
| Y-Axis | 21.25" | 539.75 mm |
| Z-Axis | 21.25" | 539.75 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | ||
| Taper | No. 40 | No. 40 |
| Table-W | 21.25" | 539.75 mm |
| Table-L | 44.1" | 1,120.1 mm |
| # Axis | ||
| Dimensions | 116.3x84.1 | 116.3x84.1 |
| Weight | 12980 lbs | 12980 lbs |

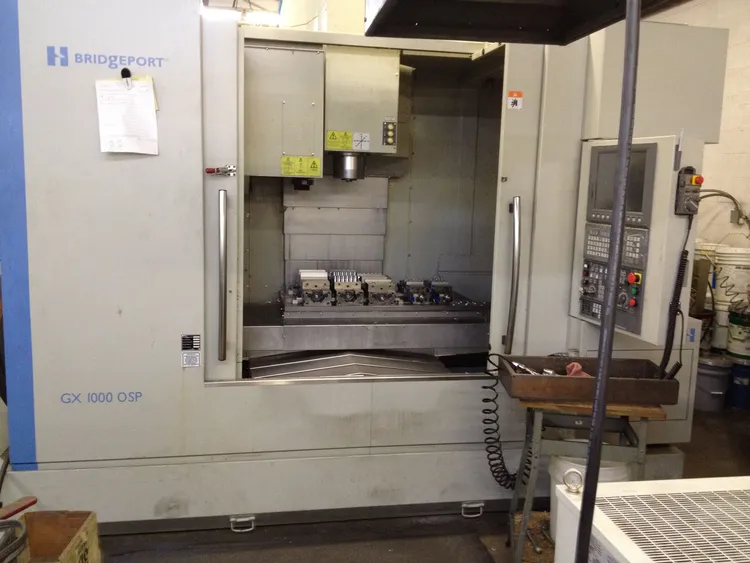

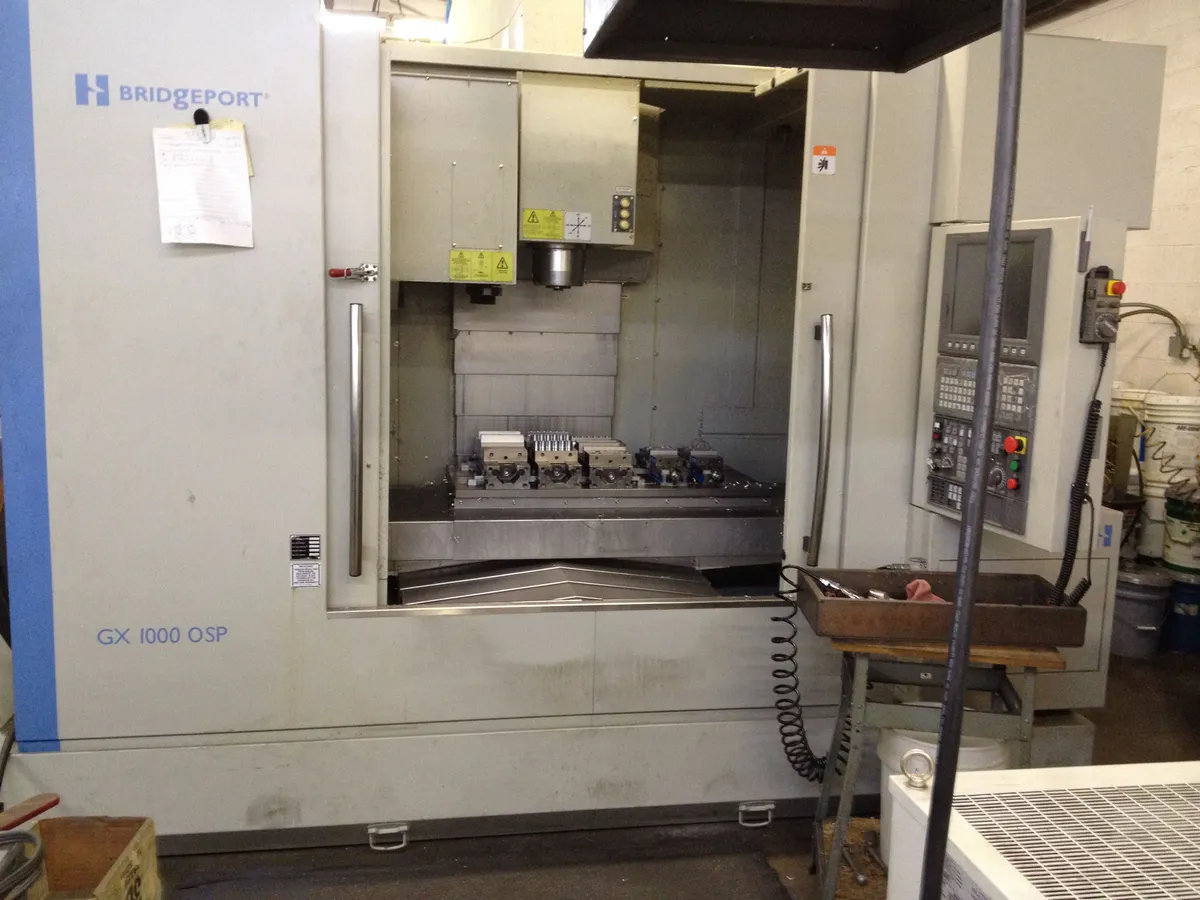

Hardinge Bridgeport GX 1000 OSP Vertical Machining Center
Year: 2011
Specifications:
Travels: X,Y,Z: 40.1" x 21.25" x 21.25"
Spindle Taper:: No. 40
Spindle Horsepower:: 20 HP (15kW)
Spindle Speed:: 10,000 RPM
Working Surface:: 44.1" x 21.25"
Floor Space:: 116.3" x 84.1"
Approx Machine Weight:: 12,980 lbs
Equipped with:
Okuma OSP Control
1000PSI Coolant through spindle
LNS Turbo Chip Conveyor
Only cut aluminum
