2011 JRI MCCS-4000-E | Washers

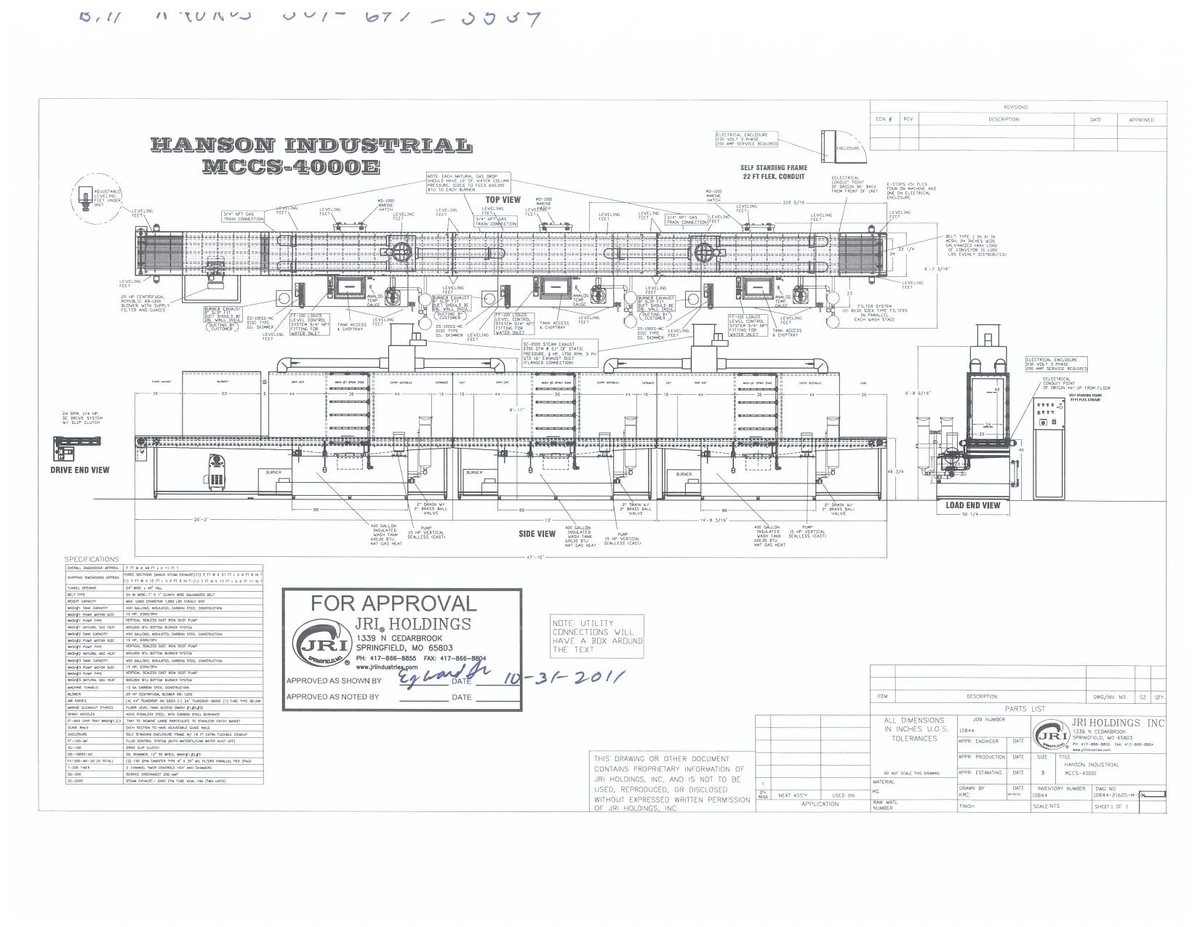

JRI Industries MCCS-4000E 4-stage Aqueous Dunnage Washer

w/ Gas Burners, Filtration, Oil Separators and more!

New: 2011/12

Specifications:

Part Opening:                         24" wide x 46" Tall

Conveyor Belt Type:             24" wide

Max Load of Conveyor:       1000 Lbs

Pumps:                                  15 HP, 200 GPM @ 60PSI

Solution Copacity:              400 Gallons(mild steel / insulated)

Drain:                                2"

Blower:                             20HP, 1,150 CFM @ 40"water column

Process Temps:

Recirculating Wash Stage:   160 Deg F.

Blow-off Aprox:                      25 Deg F. Above Ambient

Total Length of Machine:     47' 10"

Equipped With:

Centrifugal Blower w/ filter & gauges

Disc Type Oil Skimmer

Drive Slip Clutch

Chip Tray

Liquid Level Control System

Dual-Filter System

Timer-Two Channel

Service Disconnect

Steam Exhaust

Marine Cleanout Hatch

E-Stops: Front/Back

New purchase cost was in the $250k ballpark w/ freight.
