| Swing | 20" | 508 mm |
| Machining Length | 78" | 1,981.2 mm |
| # Axis | 3 | 3 |
| Chuck Size | ||
| Bar Capacity | 3" | 76.2 mm |
| Power | ||
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | ||
| Tailstock | ||
| Live Tooling | ||
| Sub Spindle | ||
| Dimensions | 175 x 69 x 58 | 175 x 69 x 58 |
| Weight | 15000 lbs | 15000 lbs |

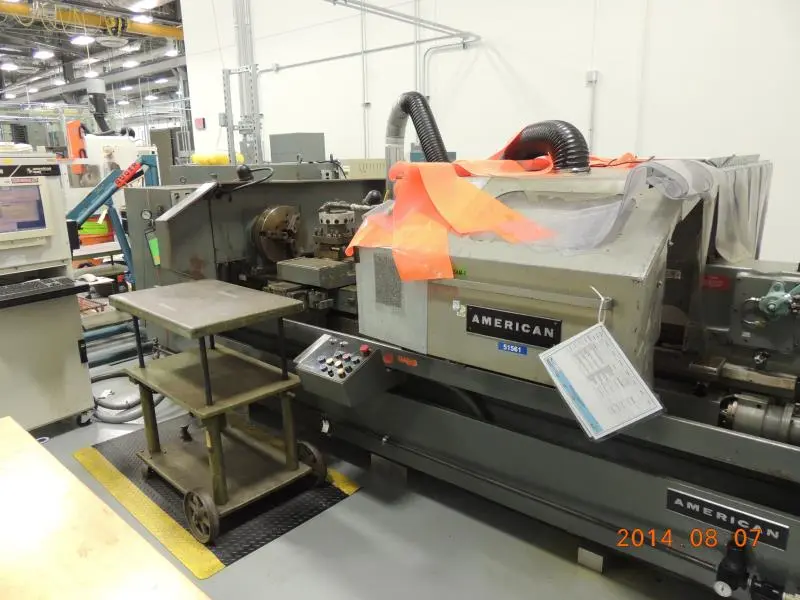

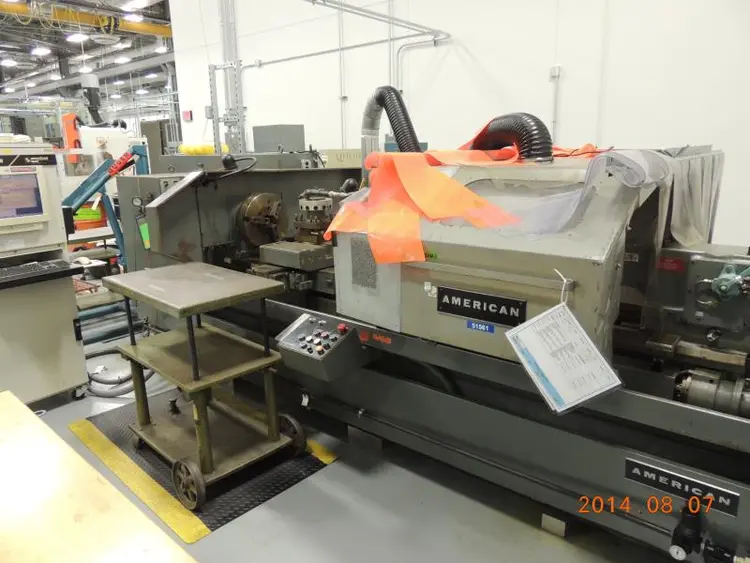

American Tool Hustler 20" x 78" 3-Axis NC Turning Center
Specifications:
Between Centers: 78"
Swing Over Carriage Wings: 20"
Swing Over Cross Slide: 10"
Cross Travel: 15"
Spindle Hole: 3"
Spindle Nose : A1-8
Spindle Speed: 3000 RPM
Turret Positions: 12
Circular Interpolation: 100"
Linear Interpolation: 100"
Threading Length: 100"
Power: 460v 3 phase
Dimensions: 175" x 69" x 58"
Weight: 15000 lbs.
