| X-Axis | 32" | 812.8 mm |
| Y-Axis | 26" | 660.4 mm |
| Z-Axis | 26" | 660.4 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 45 | 45 |
| Taper | Cat-50 | Cat-50 |
| Pallet-W | ||
| Pallet-L | ||
| # Axis | 4 | 4 |
Cincinnati T-10 4-Axis (2) Pallet System Machining Center
New: 1989
Specifications:
Travels: 32" x 26" x 26"
Spindle Speed: 6000 RPM
Drive Motor: 20hp
Feed Rate: 720ipm
ATC: 45
Taper: Cat-50
Equipped With:

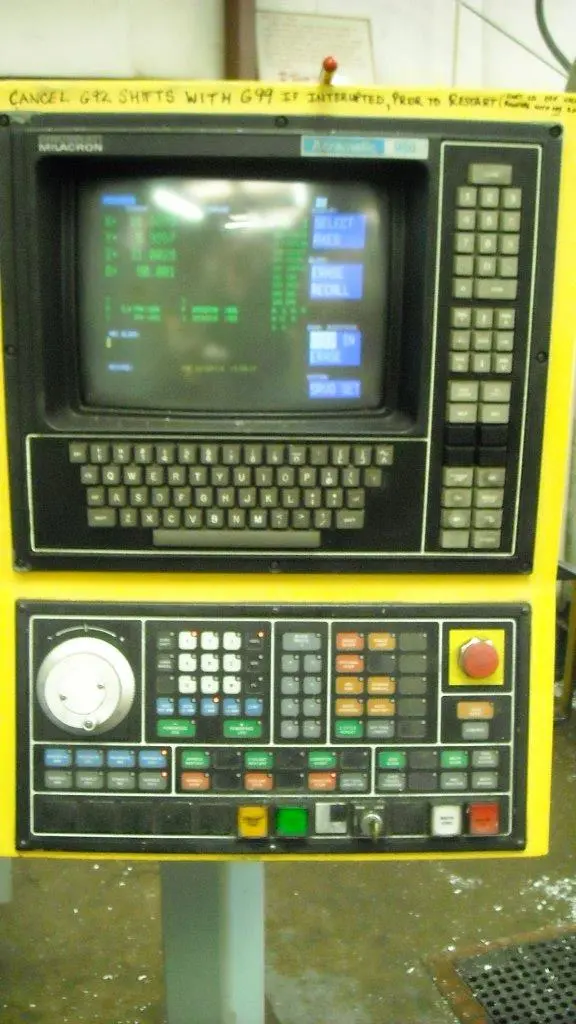

Acromatic 950 Control
4-Axis
TSC
Chip Conveyor
(3) Pallet System
Machine is fully functional with no issues and is currently under power
