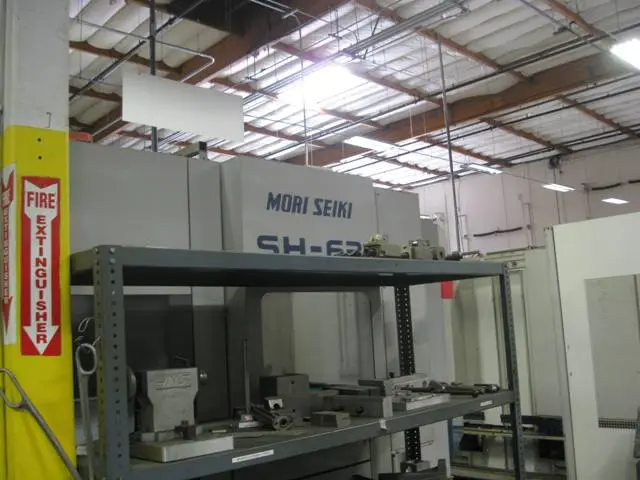

1999 MORI SEIKI SH-63 CELL

Mori Seiki SH-63 Lineal Pallet FMS

New 1999

(2) Mori Seiki SH-63 HMC’s

Specifications:

 Travels:

  X-Axis: 39”

  Y-Axis: 31.5"

  Z-Axis: 29.5"

 Spindle Speed: 12,000 RPM

 Spindle Taper: Cat #50

 Pallets: (18) 24” x 24” pallets (enclosed)

 Tool Changer: 180 ATC each

Equipped With:

 Fanuc MSC-518 Control (16M)

 Full 4th axis pallet rotation

 Pallet load and un-load station

 Pallet management console

 Coolant through spindle

 Tombstones… ect.

 Extra Mori Seiki SH-630 for Parts

Notes:

This FMS comes with (3) horizontals.. (2) are running and (1) is a parts machine

They are currently running Qualified Material on these machines.

They have run only  aluminum, as you can see from the photos the pallet

FMS is enclosed
