2004 AMADA APEILO III 367V | Punches, Fabricating

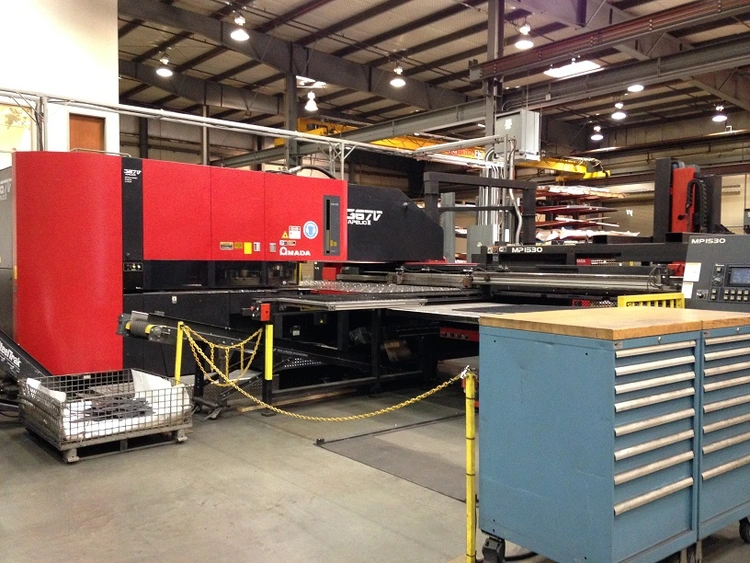

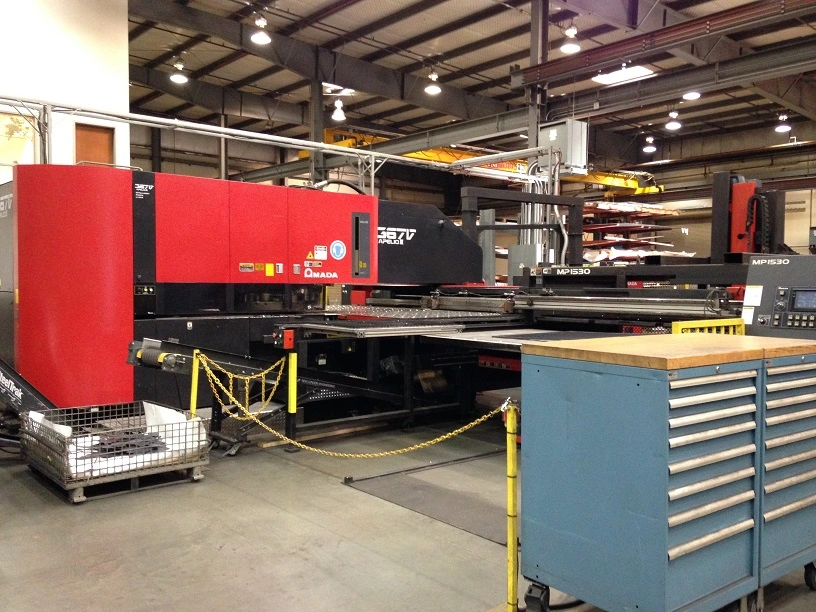

Amada Apelio III 367V 33 Ton Punch, 2KW Laser w/ MP1530 Loader

Year: 2004

Specifications:

Capacity: 33 Tons

Table Size: 60" x 72"

Max. Sheet Size (w/repo): 60" x 144"

Max Axis Travel (X-Axis): 72"

    (Y-Axis): 60"

Max. Cutting Speed: 590"/min

Press Stroke: 1.575"

Press Speed:1 220 SPM

Hit Rate (1" Move): 180 HPM

Max. Hole Diameter: 4.5"

Tool Type: Thick Turret

Turret Rotation Speed: 30 RPM

Turret Capacity: 58 stations (2 Auto-Index)

Approximate Weight: 40,000 lbs.

Equipped With:

Fanuc 16LB CNC Control

Fanuc AF2000 Laser

MP-1530 Loader (5'x10')

58 Station Turret w/ (2) A/I

Turbo System Chip Conveyor

Hydraulic Unit

Ball Transfer Table

Dust Collector

Chiller

Surface Grinder

More then $50k in Tooling (Guide Assemblies, Punchs & Dies)!

Hobbs Meter Hours:  27,400

Cycles: 18,117,019
