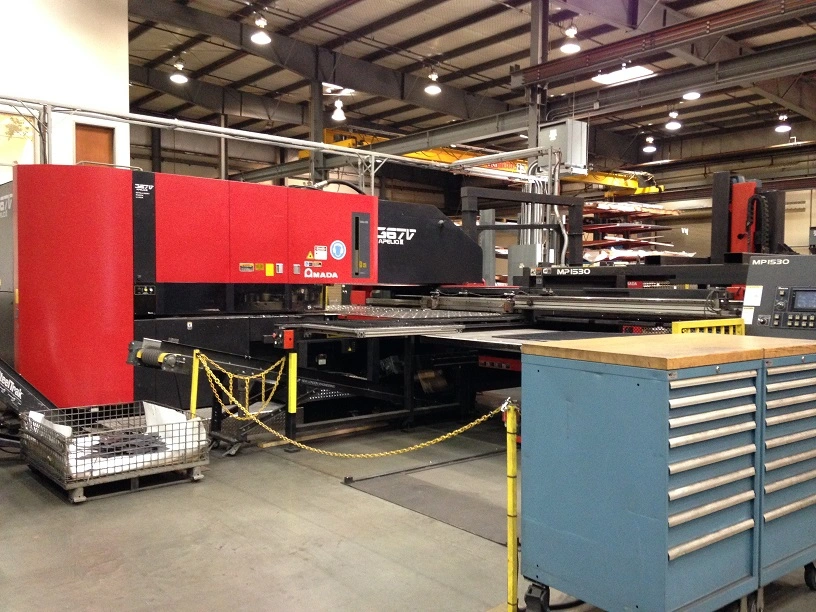

Amada Apelio III 367V 33 Ton Punch, 2KW Laser w/ MP1530 Loader
Year: 2004
Specifications:
Capacity: 33 Tons
Table Size: 60" x 72"
Max. Sheet Size (w/repo): 60" x 144"
Max Axis Travel (X-Axis): 72"
(Y-Axis): 60"
Max. Cutting Speed: 590"/min
Press Stroke: 1.575"
Press Speed:1 220 SPM
Hit Rate (1" Move): 180 HPM
Max. Hole Diameter: 4.5"
Tool Type: Thick Turret
Turret Rotation Speed: 30 RPM
Turret Capacity: 58 stations (2 Auto-Index)
Approximate Weight: 40,000 lbs.
Equipped With:
Fanuc 16LB CNC Control
Fanuc AF2000 Laser
MP-1530 Loader (5'x10')
58 Station Turret w/ (2) A/I
Turbo System Chip Conveyor
Hydraulic Unit
Ball Transfer Table

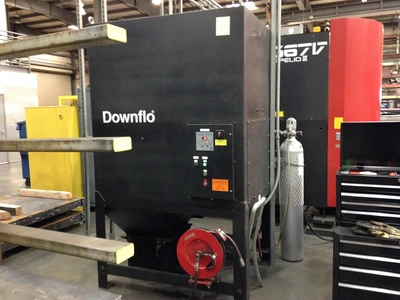

Dust Collector
Chiller
Surface Grinder
More then $50k in Tooling (Guide Assemblies, Punchs & Dies)!
Hobbs Meter Hours: 27,400
Cycles: 18,117,019
