Hitachi Seiki HT23J, 1998, 17.7" Swing, 10" Chuck, 13" Dia, 24" Length, 4K RPM, 2.6" Bar Cap, Seicos J300L Ctrl, Tailstock, Low Hours!

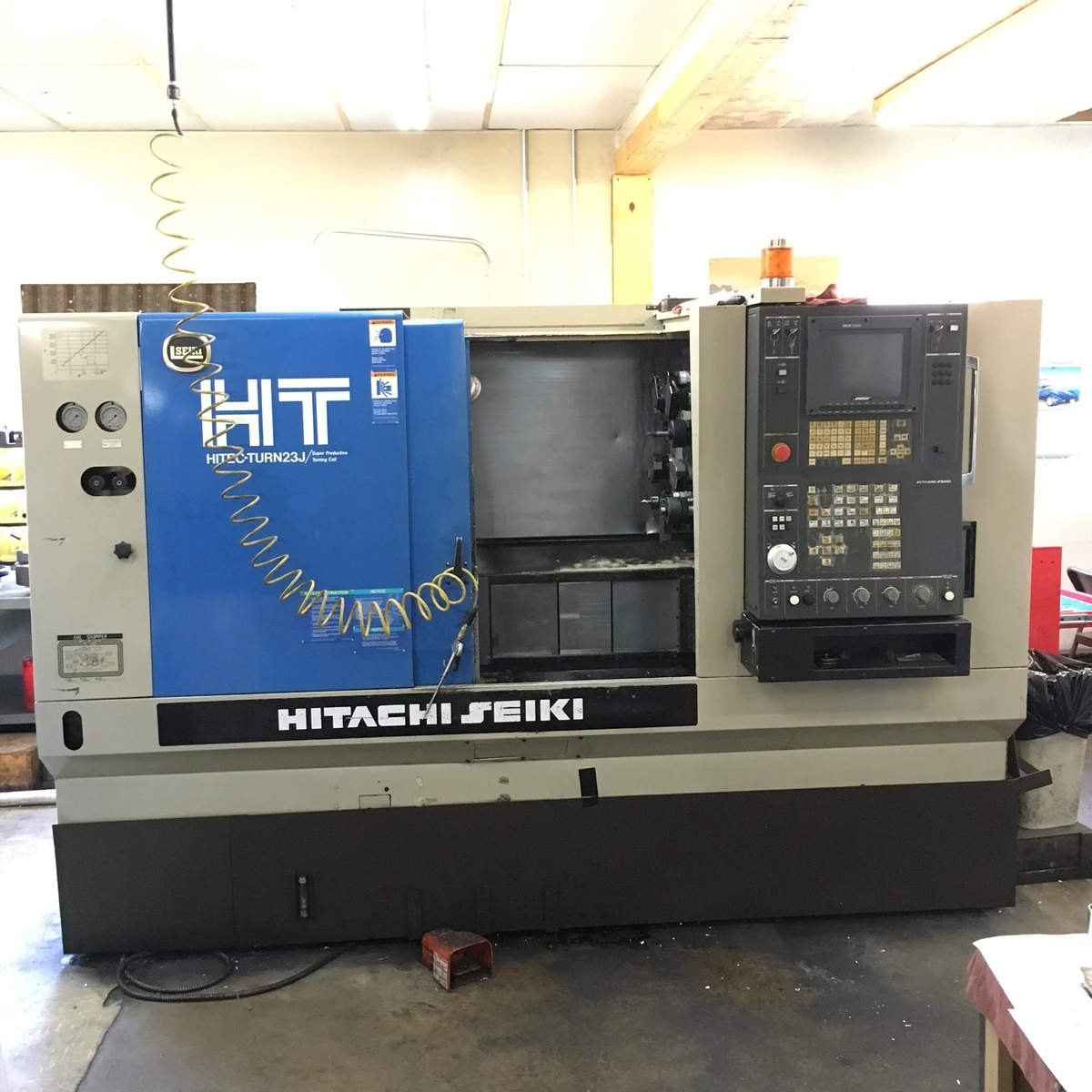

Hitachi Seiki HT23J CNC Turning Center
New: 1999
Specifications:
Swing Over Bed: 17.7"
Chuck Diameter: 10"
Max. Machining Diameter: 13.38"
Max Machining Length: 23.6"
Bar Capacity: 2.6"
X-Axis Travel: 9"
Z-Axis Travel: 24.8"
Spindle Speed: 30-4000 RPM
Spindle Nose: A2-8
Diameter of Spindle Thru Hole: 3"
Type of Turret: 10 Pos. KV
Shank Square of Square Bit: 1"
Shank Dia. of Boring Bar: 1.5"
Rapid Traverse X/Z: 1181 IPM
Tailstock Taper: MT#5
Tailstock Stroke: 20.4"
Method of Tailstock Travel: Power Operation
Spindle Motor: 20 HP
Approx Weight: 10,560 Lbs
Equipped With:
-Seicos J300L Multi Control (Yasnac)
-10" 3-Jaw Hydraulic chuck
-Toolsetter
-10 Position KV Turret
-Tailstock
-All Available Toolholders and Manuals
