1996 KOMO VMC 50/160 | Machining Centers, Vertical

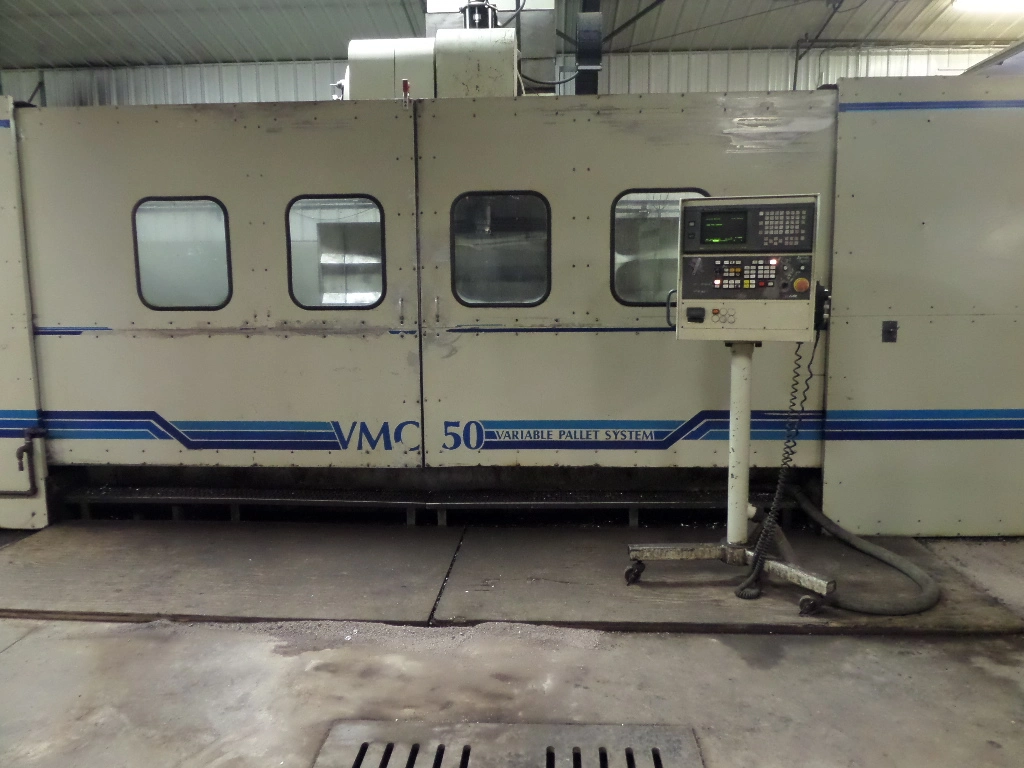

Komo VMC 50/160 CNC Vertical Machining Center

New: 1996

Specifications:

X-Axis Travel: 160"

Y-Axis Travel:   32"

Z-Axis Travel: 32"

Axis Traverse Rates: X, 600 IPM; Y, 600 IPM; Z, 600 IPM

Max Cutting Feed Rate: 250 IPM

Table Load Capacity: Unlimited (table does not move)

Table Dimensions: 160" x 32"

Spindle Speed: 0-3500

Spindle Motor: 25/30 HP

Spindle Taper: CAT 50 Taper

Tool Positions: 30 ATC (random access)

Variable pallet system: up to 4 user defined machining areas.

Electrics: 208v 3ph 60hz

Equipped with:

 Fanuc 16 MB Control

 400 tool offsets

 Kurt Vices and tooling cart

 Remote pulse generator (Hand wheel control on a cord)

 Through Spindle Coolant, 300 PSI

 Jet Pulser Pump for coolant thru spindle

 Coolant Tank Capacity: 60 Gallons, 35 GPM, 25 PSI

 Machine Dimensions: 358"L-R x 144"F-B x 140"H by my book

 Approximate Weight: 63,000 lbs.
