1996 MITSUBISHI FX-1 3-AXIS | EDM, Wire, CNC

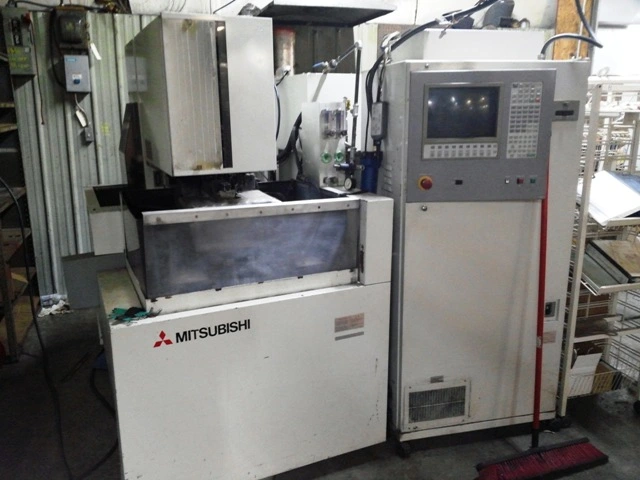

MITSUBISHI FX-1 3-AXIS EDM

New: 1996

Specifications:

 Table:

  Table Length:  24.8"

  Width:  20.8"

 Maximum Table Load:  1,168 Lbs.

 Table Resolution:  .000004"

 Travels:

  X Axis:  13.77"

  Y Axis:  9.84"

  Z Axis:  8.66"

 Taper U-V Travel:  1.250"

 Taper Capacity:   +/- 15 Deg. in 4"

 Rapid Table Feed: 51.18 IPM

 Table Height from Floor:  35.43"

 Tank: Capacity:  104 Gallons

 Power Supply:  50 Amps / 220 Volts

 Wire Diameter Range:  0.0078" - 0.011"

 Workpiece:

  Max. Workpiece Dimension:  31" x 22" 8.4"

  Distance between Platen & Table:  35.4"

 Dimensions: Overall Dimensions:  80"LR x 94"FB x 78"H

 Weight:  4,070 Lbs.

Equipped with:

 Wire Threader

 Autolube System

 Wire Chopper

 Radiator Coolant

2 new Ion tanks
