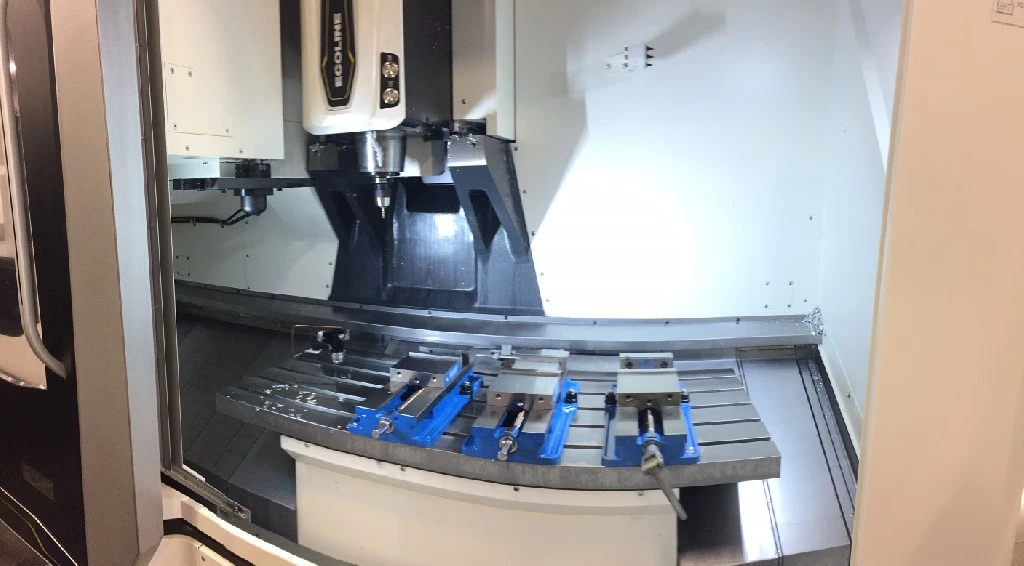

2016 DMG ECOMILL 1100V | Machining Centers, Vertical

DMG Mori EcoMill 1100V CNC Vertical Machining Center

New: 2016

Specifications:

 Travels:

  X-Axis 43.3”

  Y-Axis 22"

  Z-Axis 20.1”

 Spindle Nose to Table Top 4.7-24.8"

 Spindle Speed 12,000 RPM

 Spindle Taper BT40

 Spindle Motor 20.1 HP

 Tool Changer 30 ATC

 Max Tool Diameter 3.1" Max Tool Diameter (Adjacent) 4.9"

 Max Tool Length 11.8"

 Max Tool Weight 17.6 lbs

 Chip-to-Chip Time 3.85 sec

 Rapid Traverse (XY/Z) 1417/1181 IPM

 Cutting Feed Rate 944.9 IPM

Equipped With:

 DMG Mori SLIMline Control with MAPPS IV on Fanuc

 4th Axis Wiring & Drive

 Tool Presetter

 Spindle Probe

 LNS Turbo HB Chip Conveyor
