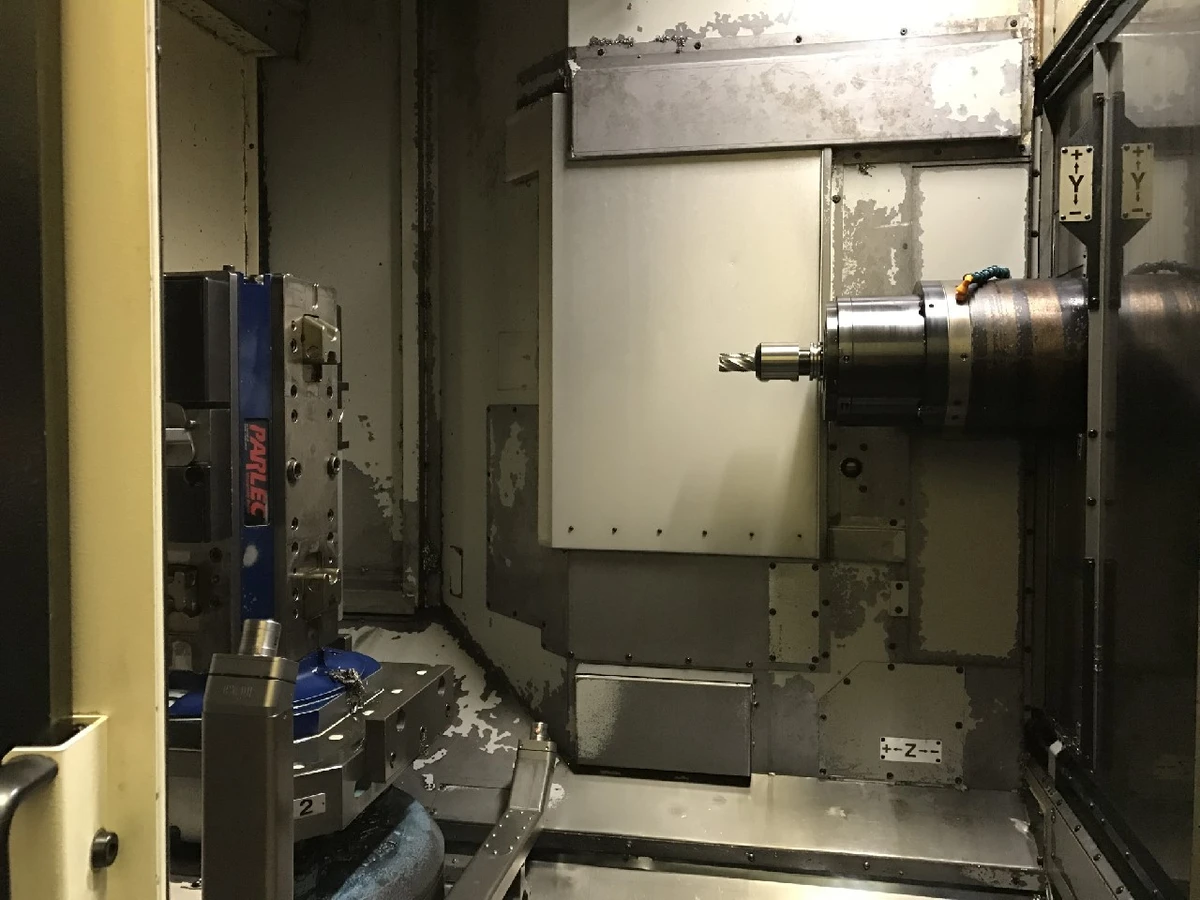

Makino A61 4-Axis HMC, 2005, 19.7" Pallets, 28.7"x25.6"x28.7" Travels, 12K RPM, CT40, Makino Pro 3 Ctrl, Renishaw Probe, Coolant, 60 ATC, Full 4th Axis
Makino A61 4-Axis CNC Horizontal Machining Center - 2 Available!
New: 2005
Specifications:
Pallet Size: 19.7" x 19.7" Tapped
Travels:
X-Axis: 28.7"
Y-Axis: 25.6"
Z-Axis: 28.7"
Spindle Nose to Pallet Center: 2.76" - 31.5"
Spindle Center to Pallet: 3.15" - 28.74"
Number of Pallets: 2
Pallet Change Time: 8 Seconds
Max Payload: 500 kg
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP Continuous
Spindle Taper: CAT 40
Equipped With:
Makino Professional 3 CNC Control
Full 4th Axis NC Rotary Table
60 Tool ATC
Renishaw Probe
NC4 Tool Breakage Detection (upgraded from NC1 Laser in 2015)
JS Retention Stud
Pallet Changer w/ Safety Cover, Door Interlock
300 PSI Thru Spindle Coolant
Coolant System w/ 26 Nozzles
Lift-up Chip Conveyor
Splash Guard
Transformer
Helical Interpolation
Tool Offset
Macros
Cutting Hours: 43,136
$360,000 New Price As Equipped
