2013 PRIMA POWER E5 | Punches, Turret
Have one to sell?
1 available
Prima Power E5 Turret Punch Press - Under 700 Hours! 900 Hits per minute, 20 station thick turret tooling, automatic tool lubrication, software upgrade, tons of tooling & options!

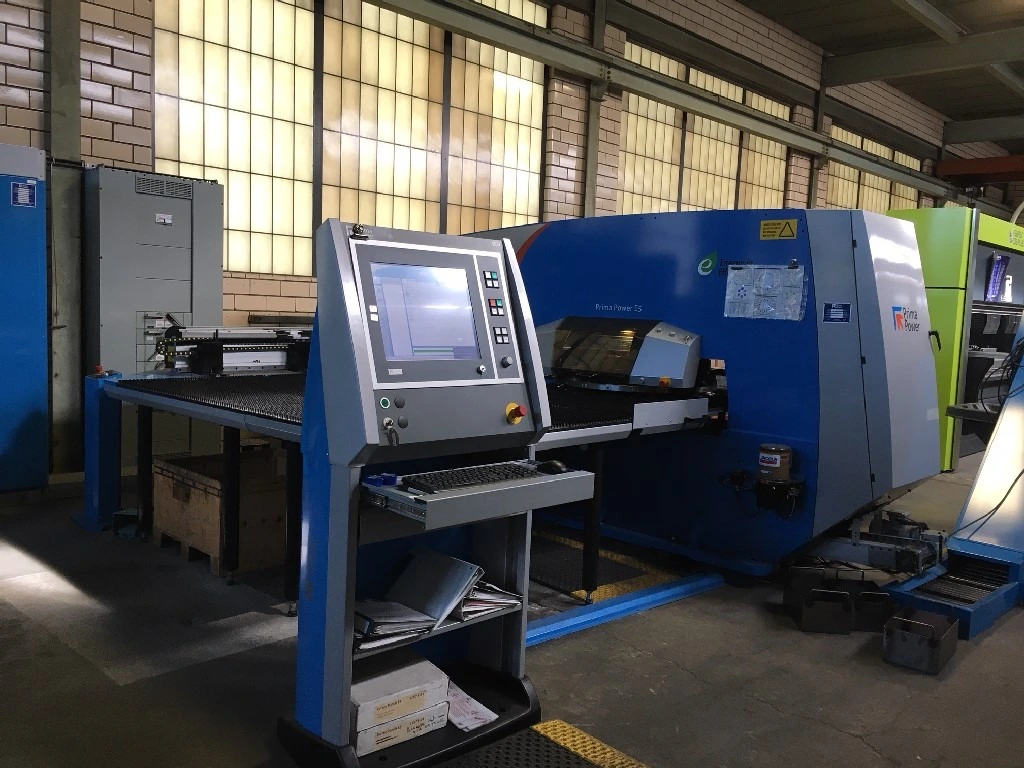

Prima Power E5 High Speed Servo Electric Turret Punch Press
New: 2013 - Under 700 Hours!
Specifications:
-900 Hits Per Minute on 1" Centers
-20 Station Thick Turret Tooling:
-Programmable Sheet Clamps with Third Clamp
-TU6L tapping - off turret tapping unit
-Brush Table Tops
-TULUS Graphical User Interface
-Automatic Tool Lubrication System
-Software Upgrade for using indexable multi-tools and 40 character letter Stamp Tool
-Work Chute (19.7" x 19.7") with Part Detection System with PC1 part conveyor
-Vacuum Slug puller with Scrap conveyor system
-Electric Cabinet Cooler
-22 US Ton
-Easy Loading with 4 pins
More details:
Tooling configuration as shown below, tools shown are offered with the Machine
Station Number Tool Type
1 MT24-8
2 B
3 Di
4 B
5 Ci
6 B
7 Di –(MT6A-135)
8 B
9 Di –(MT-8i)
10 B
11 Di – (MT8Ri)
12 C
13 Di
14 C
15 Di
16 B
17 Di-(MT8Ri)
18 C
19 Di
20 B
TU6 Tapping:
o 4-40
o 6-32
o 8-32
o 10-32
o 1/4-20
o 5/16-18
