| X-Axis | 22" | 558.8 mm |
| Y-Axis | 23" | 584.2 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |
| Dimensions | 244x113x126 in | 244x113x126 in |
| Weight | 33500 lbs | 33500 lbs |

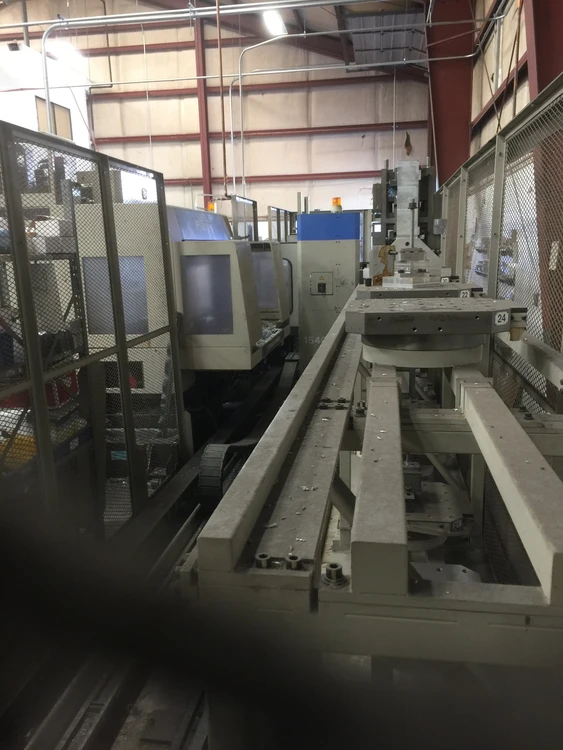

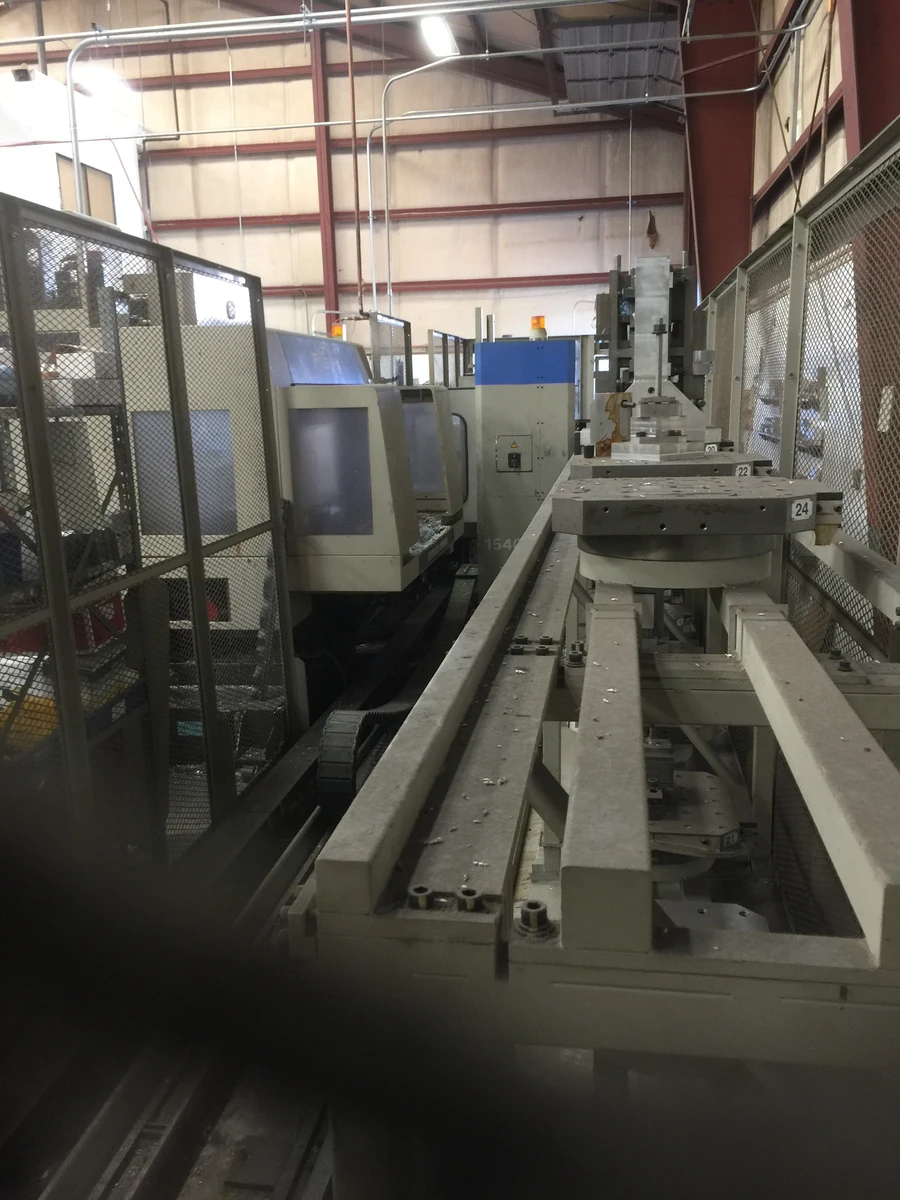

(1) USED HITACHI SEIKI HG-400 HORIZONTAL MACHINING CENTER
New: 1999
Specifications:
Travels:
X-Axis: 22"
Y-Axis: 23"
Z-Axis: 20"
Pallet size: 15.75" x 15.75"
Number of Pallets: 24 Pallets (2 levels x 12)
Spindle Speed: 12K RPM
Spindle Taper: CAT 40
Motor: 15 HP
Feed Rate Rate: 0.01 - 630 IPM
Machine Dimensions: 244" x 113" x 126"
Machine Weight: 33,500 lbs.
Equipped With:
Mark III Control
120 Tool ATC
NOTE: Machine can be seen under power in plant. Only used to cut aluminum. Spindle is vibrating at 8-10K RPM and needs to be chromed and regrinded. All other features on the machine are in good condition.
This equipment is currently unavailable. Similar equipment available now is shown below.
