2008 PRIMA SYNCRONO 1530 | Laser Cutters
Have one to sell?
1 available
Prima Syncrono 1530HS 4000W Laser & Shuttle Table, 2008; 120" x 60" x 5" Travels, Primach-20L Controller, Dust Collector, Quick Pierce, & More

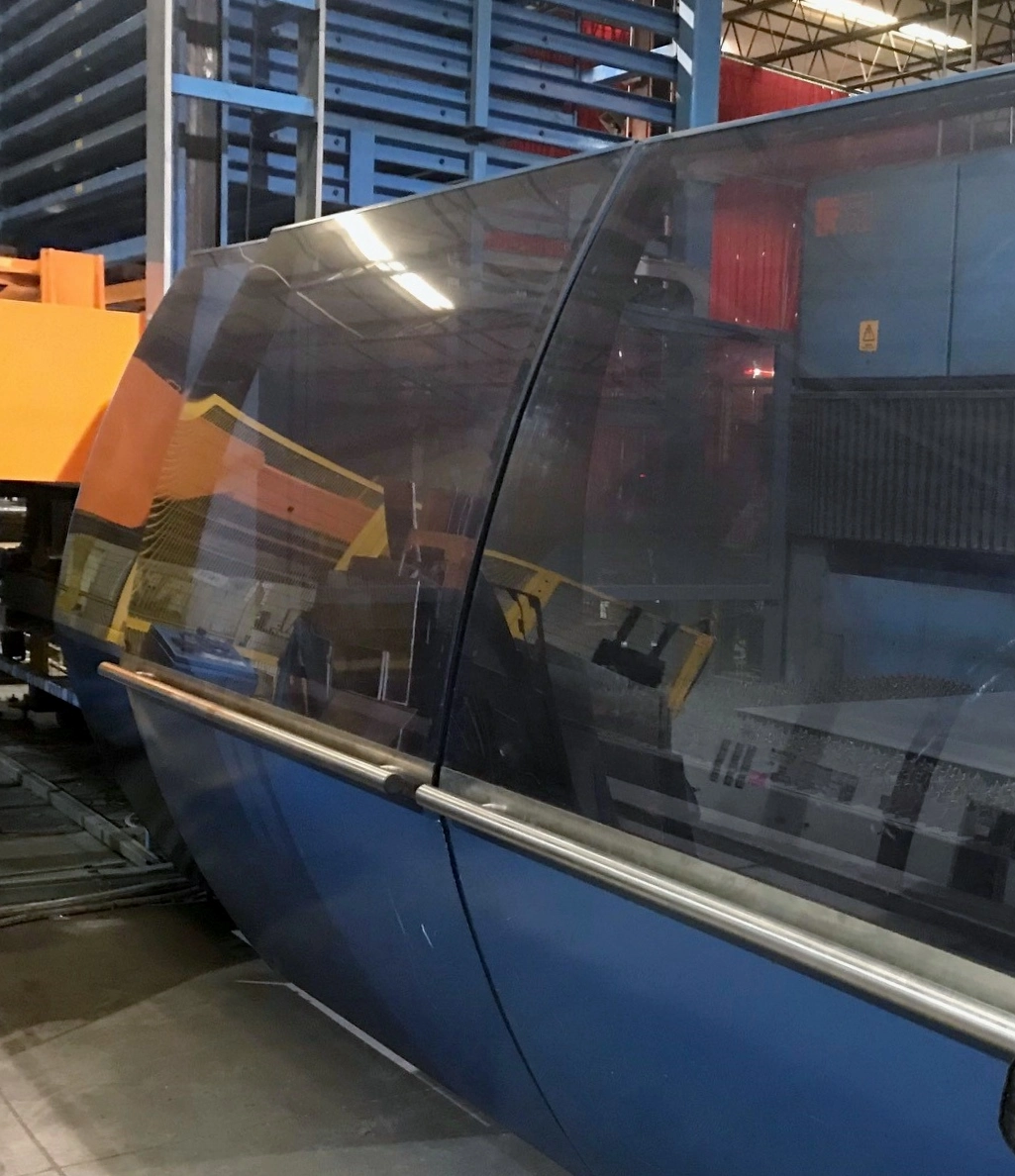

Prima Syncrono 1530 HS 4000 watt Laser Cutting System and Shuttle Table
New: 2008
Specifications:
Machine Axis Strokes X-120" Y- 60" Z-5.1 "
Local Cutting Head Axis Strokes U-4" V- 4"
Maximum Individual Axis Speed (X, Y) 3937 in/min (100 m/min)
Maximum Axes Speed (Z) 1968 in/min (50 m/min)
Maximum Individual Local Axis Speed (U,V) 5905 in/min
Linear Axis Resolution (X, Y) 0.00004 inches (0.001 mm)
Accuracy: Positioning Accuracy (Pa): 0.001 inches (0.03mm) Repeatability (Ps): 0.001 inches (0.03 mm)
Electrical Supply 460 VAC ±10%, 3 phase + ground, 60 Hz
Electrical Consumption (Machine, Chiller, Laser) 67kVA
Maximum Overall Dimensions Length-19.0' Width-11.5' Height- 8.2'
Weight (approximate) 26,400 lbs. (12000 Kg)
Standard CO2 Laser Power 4000 Watts
Additional Options:
CNC PRIMACH-20L Controller
Laser Resonator 4000 Watt
Dust Collector L-Cut 2-5P (1500cfm, supplied by Keller)
Compact Tower w/10 Shelves, Single shelf capacity 6,600 lbs Integrated over the Pallet Changer
Laser Ancillary Equipment (Water Chiller, Air Dryer)
Safety Enclosure
Cutting Head with Capacitive Sensing
Safe Impact Protection System
Lens Holder (Includes 5.00’’ and 7.5’’ lenses)
Automatic Focusing Control (F-axis)
Programmable High Pressure Assist Gas with Two Ports (300 psi)
Automatic Sheet Referencing System
Automatic Switch Off System
Ducted and Zoned Cutting Table
Dual Pallet Shuttle Table
Uses NC Express programming software
Quick Pierce System
Laser Piercing Monitor
