2001 AMADA PEGA 357 | Punches, Turret

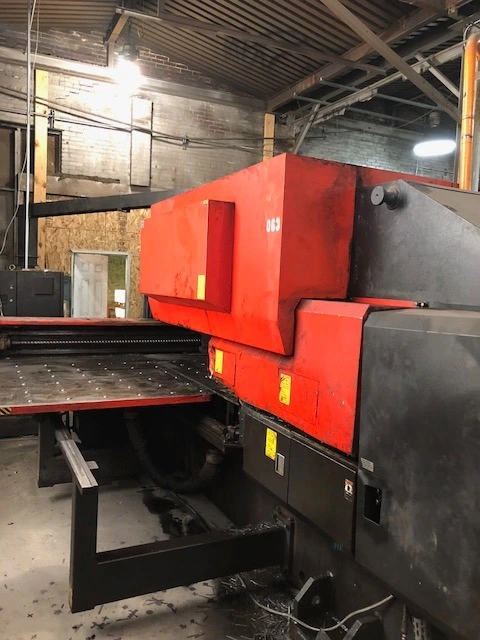

33 Ton Amada Pega 357 CNC Punch Press

Year new: 2001

Specifications:

 Tonnage: 33 Tons

 Maximum Sheet Size: 50" x 70" (50" x 144" w/ repo)

 Maximum Punch Capacity: 1/4"

 Max Hole Size (10 ga.): 3.5"

 Max Hole Size (1/4"): 1.6"

 Rapid Feedrates: 3150 IPM

 Turret Style: Thick

 Turret Speed: 30 RPM

 Number of Stations: 58 with (2) A/I

 Approximate Overall Dimensions                 12’ W X 17’L X 7’ H

 Approximate Overall Weight                         26,000 LBS

Equipped With:

 Amadan 04 PC CNC Control

 58 Station Turret w/ (2) A/I Stations

 Thick Style Turret

 Ball Transfer Table

 (2) Work Clamps

 Misc. Books and Manuals
