2002 AMADA GEMINI FO3015 | Laser Cutters

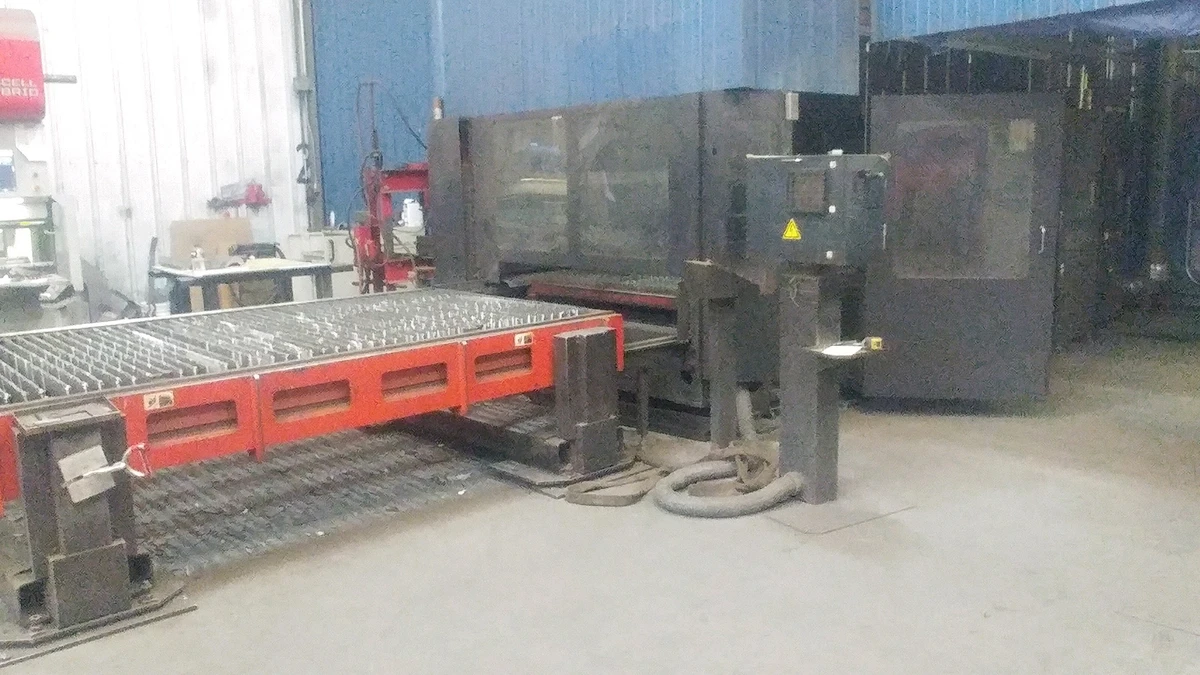

AMADA GEMINI-FO3015, 4000 watt, 60" x 120" sheet, with Shuttle Table
Manufactured 2002

Sheet-W:      60 "

Sheet-L:      120 "

Wattage:      4000 w

X-Travel:      122 "

Y-Travel:      61 "

Z-Travel:      7.87 "

Weight:      35,000

Control:      CNC (Fanuc 160i-L 4000)

EQUIPPED WITH:

Fanuc #160i-L CNC Controller

4000 Watt Fanuc AO4B Laser Resonator (Model C4000)

Amada Duel Shuttle Table (Model SFT3015)

Flying Optics

Orion RKL-1500V-BA Chiller Unit

Dust-Hog Dust Collector (Model:FJH16-4)

Light Curtain for Table & Shuttle Table/ Sheet lifter (included)

CATALOG SPECIFICATIONS:

Laser Output:      4000 WATTS

Peak Pulse Power:      5000 WATTS

X-Axis Travel:      122.8″

Y-Axis Travel:      61″

Z-Axis Travel:      7.87″

Sheet Size, Max.      60″ x 120″

Material Weight Capacity, Max.      1850 LBS

Material Thickness Carbon Steel, Max:      .75″

Material Thickness Stainless Steel, Max:      .375″ CC

Material Thickness Aluminum, Max:      .375″

Table Dimensions, W x L:      60.02″ x 120.02″

Cutting Speed, Max.      787 IPM

Axis Positioning Speed, Max.      3150 IPM

Axis Positioning Speed, 45-=Degree Vector:      4554 IPM

Z-Axis Speed, Max:      2363 IPM

Machine Footprint, L x W:      385″ x 107″

Weight Approximately:      35,000 LBS
