2005 MAKINO A61 | Machining Centers, Horizontal

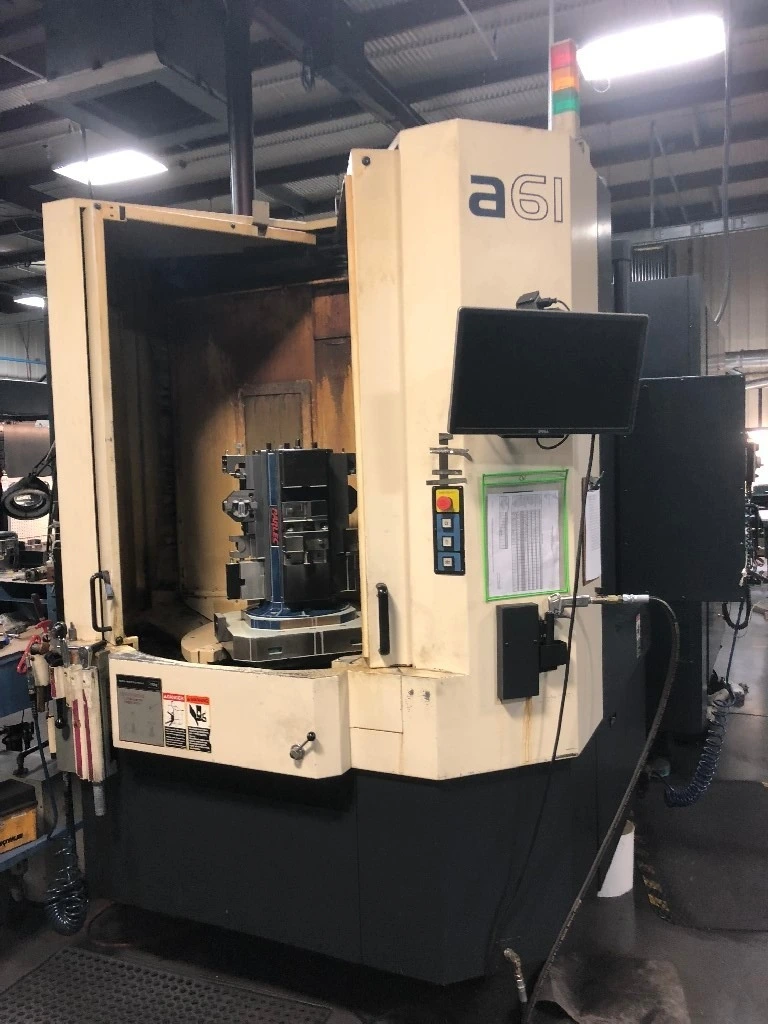

Makino A61 4-Axis CNC Horizontal Machining Center - 2 Available!

New: 2005; s/n 68

New: 2004; s/n 26

Specifications:

 Pallet Size: 19.7" x 19.7" Tapped

 Travels:

  X-Axis: 28.7"

  Y-Axis: 25.6"

  Z-Axis: 28.7"

 Spindle Nose to Pallet Center: 2.76" - 31.5"

 Spindle Center to Pallet: 3.15" - 28.74"

 Number of Pallets: 2

 Pallet Change Time: 8 Seconds

 Max Payload: 500 kg

 Spindle Speed: 12,000 RPM

 Spindle Motor: 25 HP Continuous

 Spindle Taper: CAT 40



Equipped With:

 Makino Professional 3 CNC Control

 Super GI.3 Control for faster processing (2004 machine)

 Full 4th Axis NC Rotary Table

 60 Tool ATC

 Renishaw Probe

 NC4 Tool Breakage Detection (upgraded from NC1 Laser in 2015)

 JS Retention Stud

 Pallet Changer w/ Safety Cover, Door Interlock

 300 PSI Thru Spindle Coolant

 Coolant System w/ 26 Nozzles

 Lift-up Chip Conveyor

 Splash Guard

 Transformer

 Helical Interpolation

 Tool Offset

 Macros

 Helical Interpolation

 Run hour parts display

 Data server

 Increased program storage (1280m)

 Custom i/o m-codes

 Tool offset memory Type “C”

 Additional 48 work offsets

 High speed skip function

 600 Macro common variables

Cutting Hours: 32452 (2004 machine), 41129 (2005 machine)

$360,000 New Price As Equipped
