2000 MORI SEIKI GV-503 | Machining Centers, Vertical

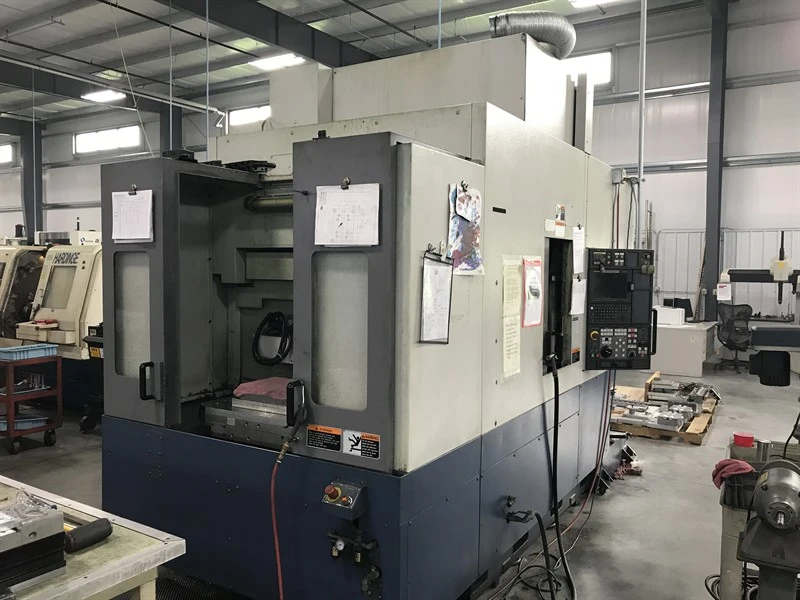

Mori Seiki GV-503 Twin Pallet Vertical Machining Center

New: 10/2000

Specifications

Number Of Tables 2

Pallet Change Time 6.5 Sec.

Type 180 DEG. Swing

Table Size 29.5'' x 21.7''

Table Load 660 x 2 LBS

X - Axis Travel 24.1"

Y - Axis Travel 20.1"

Z - Axis Travel 18.1"

Rapid Traverse Rate X, Y, Z 1653, 1653, 1653, IPM

Spindle Nose NO. 40

Spindle Speed 12,000 RPM

Tool Magazine 30 ATC

Tool Change Time 0.9 Sec.

Chip To Chip Time 3.2 Sec.

Max Tool Dia. 3.1''/4.9''

Max Tool Length 11.8''

Maximum Tool Weight 17.6 LBS.

Main Motor 30 HP

Equipped with

 MORIC MSG 805 CNC CONTROL

 10.4'' COLOR LCD

 EXTENDED PART PROGRAM EDITING

 MAPS PROGRAMMING

 HELICAL

 FACTORY TWIN PALLET CHANGER

 RIGID TAPPING

 SPINDLE CHILLER

 DIN STYLE THRU SPINDLE COOLANT

 CHIP BLASTER VEGA 1000 HIGH PRESSURE  COOLANT

 CHIP CONVEYORS INTERNAL / EXTERNAL

 FULL ENCLOSURE

 ALL AVAILABLE MANUALS
