2005 AMADA 205050 VIPROS | Punches, Turret

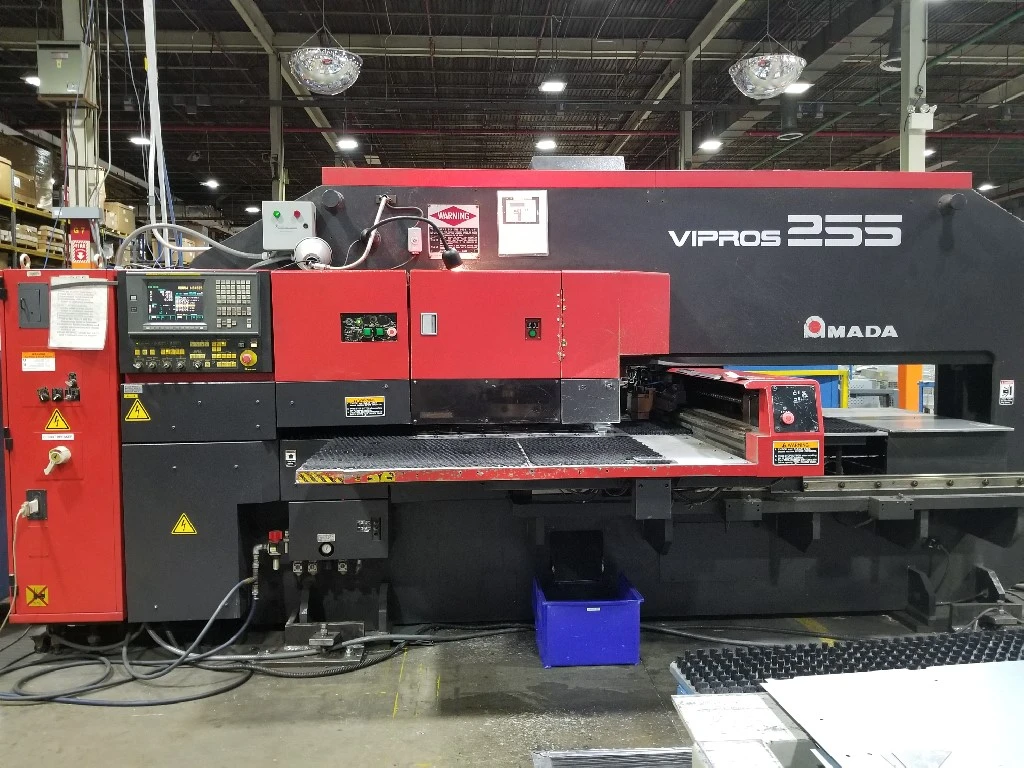

2005 Amada Vipros 255 22 Ton 50" x 50"

TECHNICAL DATA:
Capacity.................................................................... 22 Ton
Sheet Size.................................................................50" x 50" (Longer Using Auto Repo.)
Thickest Material.......................................................10ga. M.S.
Max. Hole Diameter...................................................3-1/2"
Number of Stations....................................................31 (With 3 A/I Sta.-(2) 1 1/4", (1)-2")
Max. Ram Stroke.......................................................1.575"(Adjustable)
X/Y Axis Only Hit Rate (.079" Pitch)(.098" Stroke)... 1,000 HPM
X/Y Hit Rate(.079" Pitch)(.118" Stroke) ......................720/510 HPM
X/Y Hit Rate-1" Centers(.315" Stroke) .......................340/280 HPM
Linear Positioning Speed............................................2,559 IPM (X), 1,968 IPM (Y)
Max. Forming .............................................................1/2" Flange
Standard Control.........................................................Fanuc 18P
Tape Format................................................................E.I.A. or A.S.C.I.I.
Programming Mode....................................................Absolute/Incremental/Manual
Smallest Progammable Increment..............................001"
Electrics.......................................................................220/440 Volts/3/60
Machine Weight.......................................................... 21,500 Lbs.

Equipped with:

Fanuc 18-9 controller

Motivair mpc-AO300 Chiller (2017)

Long Guides

spare new heat-exchanger
