1984 DONEWELL H120-3000 | Brakes, Press

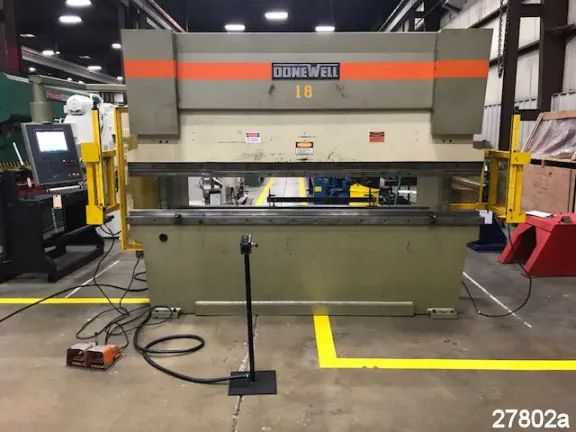

10 FT. X 10 GA. Donewell CNC Press Brake

Specifications:

Bending capacity: 10' x 10 ga. mild steel

8' x 3/16" mild steel

6' x 1/4" mild steel

Tonnage capacity: 120 tons

Overall length of bed & ram: 10'

Distance between housings: 8'4"

Stroke:                      5-3/4"

Open height:                  15"

Closed height:                9-1/4"

Throat depth:                9-3/4"

Width of bed:                4"

Floor to top of bed:          33"

Speeds approx.:              4"/second approach

                              5/16"/second pressing

                              2"/second return

Equipped With:

 24" Cybelec two axis back gauge

 1-3/4" high die rail

 Free standing control with dual palm buttons for run & emergency stop button

 Electric foot switch

 Key selector switch for hand - foot

 Pushbuttons for motor start - stop

 Sectional ram die clamps

 *ISB safety light curtain

 Hydraulic pump, driven by

 10 HP 240 volt motor

Weight approx. 19,000 lbs.

Overall dimensions approx. 145" L-R x 70" F-B x 98" H
