Hydrapower 8' x 3/16", 100T, 6" Stroke, CNC 2-Axis back gauge

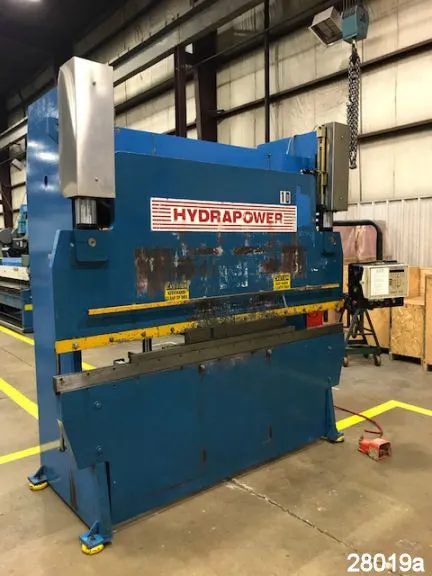

8 FT. X 3/16" Hydrapower CNC Press Brake
New: 1995
Specifications:
Bending capacity: 8' x 3/16" mild steel
Tonnage capacity: 100 tons
Overall length of bed & ram: 8'
Distance between housings: 78"
Stroke: 6"
Open height: 13"
Closed height: 7"
Throat depth: 8"
Width of bed: 3"
Floor to top of bed: 34-1/2"
Speeds approx.: 95"/minute advance
20"/minute press
35"/minute slow return
160"/minute fast return
Equipped With:
24" Autogauge 'CNC 99' two axis back gauge with vertical adjustment
3" high die rail
Electric foot switch
Ram tilt adjustment & stroke length adjustment
Sectional ram die clamps
Hydraulic pump, driven by 7.5 HP 1745 RPM 230/460/3/60 motor
Weight approx. 11,000 lbs.
Overall dimensions approx. 102" L-R x 68" F-B x 100" H
