BLANCHARD 11-16 | Grinders, Surface, Rotary
Have one to sell?
1 available

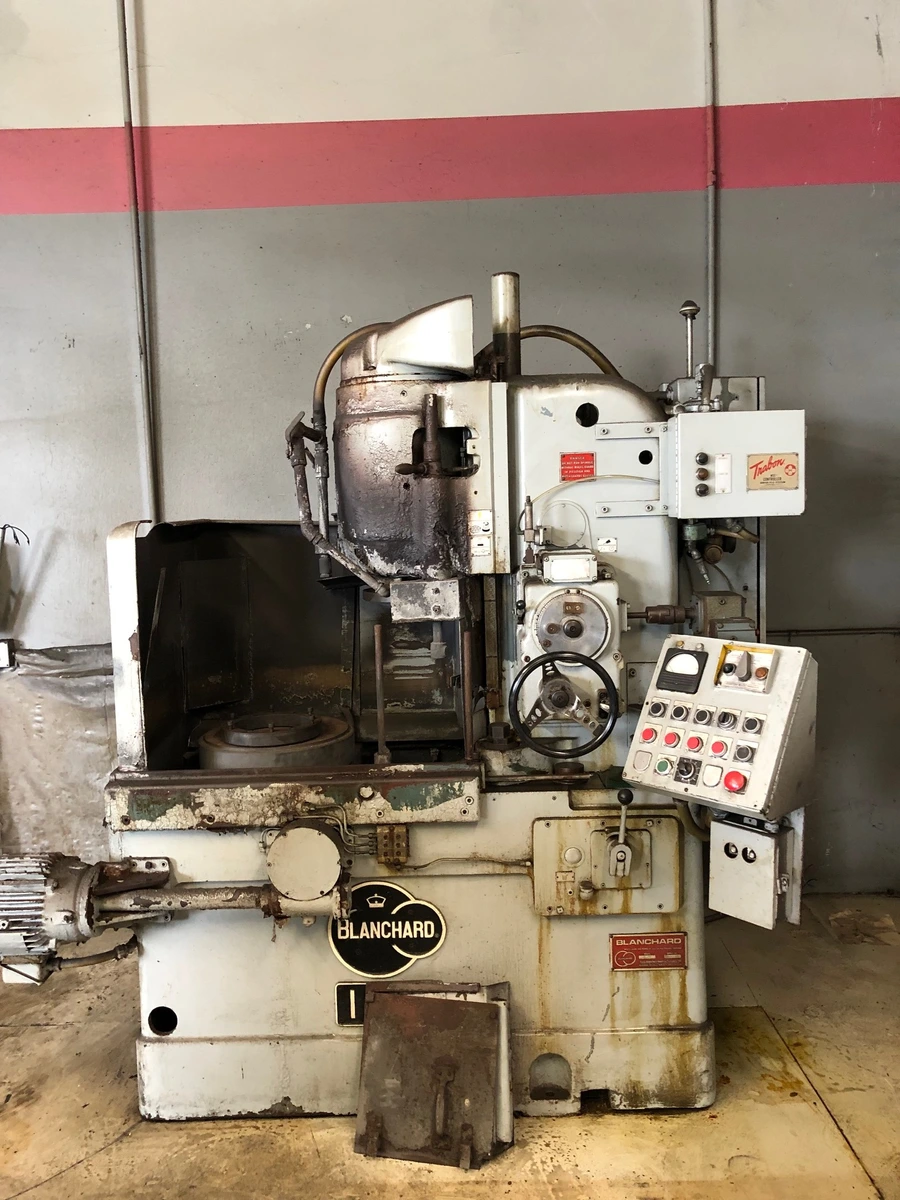

Blanchard 11-16 Vertical Spindle Rotary Surface Grinder, 2 Available
Blanchard #11-16, 16" Vertical Spindle Rotary Surface Grinder - 2 Available
Specifications
Spindle Motor: 15 HP, 240/480 volt,
Range: 20" Diameter x 9" Vertical
Chuck: 16" Diameter
Chuck Speeds: 15, 24, 41, 64 RPM
Grinding Wheel Speed: 1200 RPM
Feeds: .003 - .070 IPM
Floor Space: 5'3"L x 3'6"W x 6' 8-3/4"Max./5' 9-1/2"Min.H
Approx. Weight: 7,500 lbs
Equipped with:
Magnetic Chuck Controls
Coolant Pump and Piping
