2011 PARPAS XS63

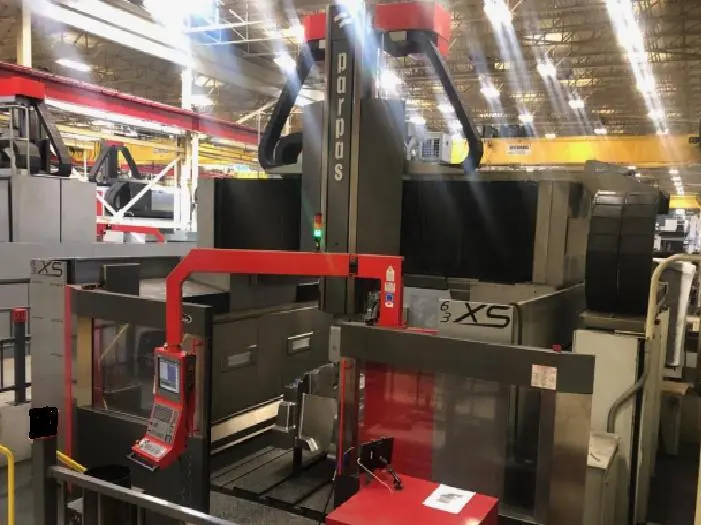

Parpas XS63 5-Axis High Speed Gantry Milling Machine

New: 2011

Specifications:

 Travels:

  X-Axis: 236"

  Y-Axis: 118"

  Z-Axis: 59"

 Rapid Traverse Rate:

  X-Axis: 3150 IPM Rack System

  YS-Axis: 1575 IPM Ballscrew System

 Milling Head 1: TIC 75

  Taper: ISO #50

  Speed: 5000 RPM

  Power: 40 KW/50 KW Max

  Torque: 585 Nm

  A-Axis: +/- 180 Deg/2.5 Deg Index

  C-Axis: +/- 200 Deg/Continuous Index

 Milling Head 2: TOE 29

  Taper: HSK 63

  Speed: 20000 RPM

  Power: 29 KW/37 KW Max

  Torque: 96 Nm/115 Nm Max

  A-Axis: +/- 105 Deg Continuous

  C-Axis: +/- 200 Deg Continuous

 Milling Head Storage: Automatic 2-Head Changer

 Table Weight Capacity: Unlimited

 Table Size: 236" x 118"

 Power Requirements: 400V/50 Cycle/150 Amp

 Coolant Tank: 220 Gal, 7 Bar Max Pressure

 Tool Changer: ISO #50 120-Tool Pos/HSK 63 60-Tool Pos

Equipped With:

 Heidenhein iTNC 530 CNC Control

 Heidenhein Scales

 Siemens Motors & Drives

 Chiller Unit

 Coolant Tank

 Renishaw Wireless Touch Probe

 Blum Laser Tool Presetter

 AC Unit Cooled

 All Documentation, Foundational Prints, Electrical Drawings
