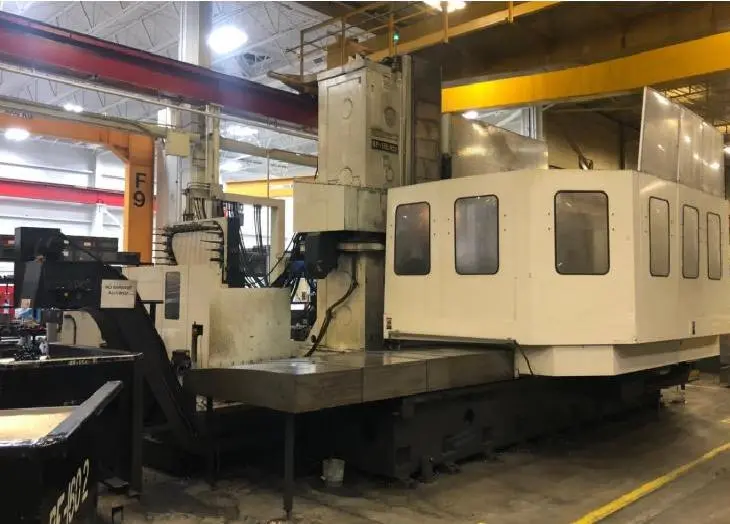

Toshiba BP-150.R22 Horizontal Boring & Milling Machine with 4-Axis Rotary Table
New: 2014
Specifications:
Travels:
X-Axis: 160"
Y-Axis: 100"
Z-Axis: 60"
W-Axis: 28"
Quill Diameter: 5.9"
Rapid Traverse Rate: 393 RPM
Spindle Taper: ISO#50
Spindle Speed: 2500 RPM
Spindle Power: 37 KW
Spindle Gearbox: 2 Speed
Table Load Capacity: 44,000 Lbs
Table Size: 86.6" x 70.8"
Automatic Tool Changer: 120 Tools
Power: 220 V/60 Cycle/80KVA
Equipped With:
Tosnuc 999 32-Bit CNC Control
Glass Scales
Coolant Thru Spindle (110 Gallon Coolant Tank)
Renishaw RMP60 Wireless Touch Probe
All Manuals and Documents
