2000 AMADA VIPROS 358 KING II | Punches, Turret

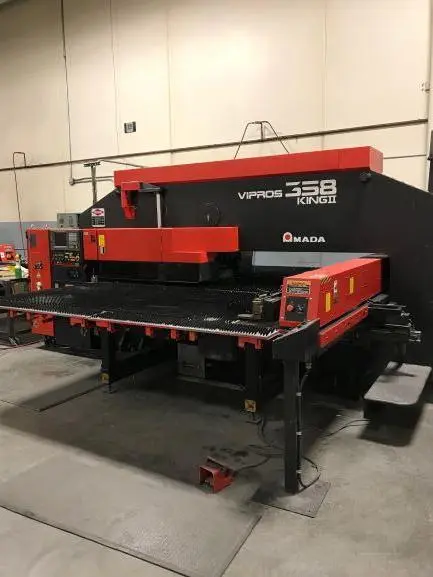

33 Ton Amada Vipros 358 King II turret punch press

With Fanuc 18P control

2001 Model / Mfg.  in 2000

Frame design: Bridge

Press capacity (tons): 33 Ton

Type of punching force: Fully Hydraulic

X axis travel (Inches): 78"

Y axis travel (Inches): 50"

Throat depth (Inches): 50"

Number of turret stations: 58 Stations

Type of computer control: Fanuc 18P

Type of clutch and brake: Fully Hydraulic

Maximum material thickness (Gauge):.187" Brush table

Max. Hit Rate (.039" Pitch) (.078" Stroke): 1200 HPM

X/Y Hit Rate (1" Pitch) (.118" Stroke): 460/360 HPM

X/Y Hit Rate - 1" Centers (.315" Stroke): 340/290 HPM

Linear Positioning Speed (45 degrees): 3,150 IPM (4450 IPM)

Type of tooling: Thick

Sheet address at loading: Front

Automatic sheet repositioning: Yes

Specifications - Fanuc 18P Controller

Model Fanuc 18PC (with PHNC)

Control Function X, Y, T & C

Input Method MDI, 31/2" Floppy, DNC

Minimum Command Unit 0.001" (X, Y) .010 (C)

Minimum Travel Unit 0.001" (X, Y) .010 (C)

Operating Modes Automatic, MDI & Manual

Display Modes Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics, Interlock Displays Oil Temperature, Oil Pressure, Door Open

Turret Specifications:

Turret Capacity: 58 Stations (4 auto-index)

Turret Configuration

1/2": 24

1 1/4": 24

2": 4

3 1/2": 2

Auto-index 1 1/4": 2

Auto-index 4 1/2": 2

Comes fully loaded with 58 Amada Ultra-Tec holders

Under power and running
