WARDJET ZX3043-5 | Waterjet Cutters

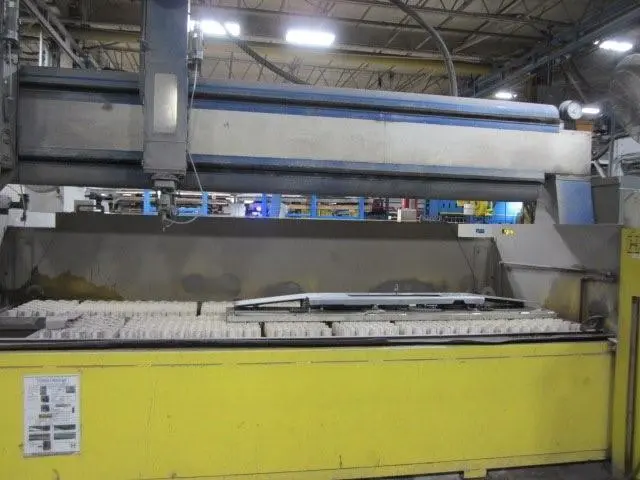

WardJet ZX3043-5 Waterjet Cutting System

Specifications:
Work Envelope: 10.1' x 14.1'
Y-Axis: 60"
X-Axis: 168"
Z-Axis: 36"
Max. Cutting Speed: 0.01 in/min - 500
Contouring Speed: 150 IPM
Max. Traverse Speed: 500 IPM
Intensifier Pump (Water Cooled) Output: 60,000 PSI
Intensifier Pump Motor: 50 HP
Linear Positioning Accuracy (+/-) Per Axis: .003"
Repeatability (+/-) Per Axis: .001"
Electrical: 230V/60Hz/3Ph

Equipped With:
Wardjet Dual Touch Screen CNC Controller (IKUHLU* Software Interface)
Dual 50HP 60KPSI KMT Intensifier Style Pumps
(1) Full 5-Axis Abrasive Cutting Head
(1) 3-Axis Abrasive Cutting Head
Abrasive Sensors
Dual Hoppers
Water Pre-Treatment System
Live Remote Camera
Front and Back Automatic SafeWalls™ with all Work Zones Protected by Light Curtains
