Emco VT-250 Inverted Vertical Lathe; 10" Chuck, 4K RPM, 10" Swing; A2-6 Spindle, 12 Station, VDI40 Tool Holder, 4K RPM Tool Speed, Siemens Ctrl
Excellent Condition, 2 Available!

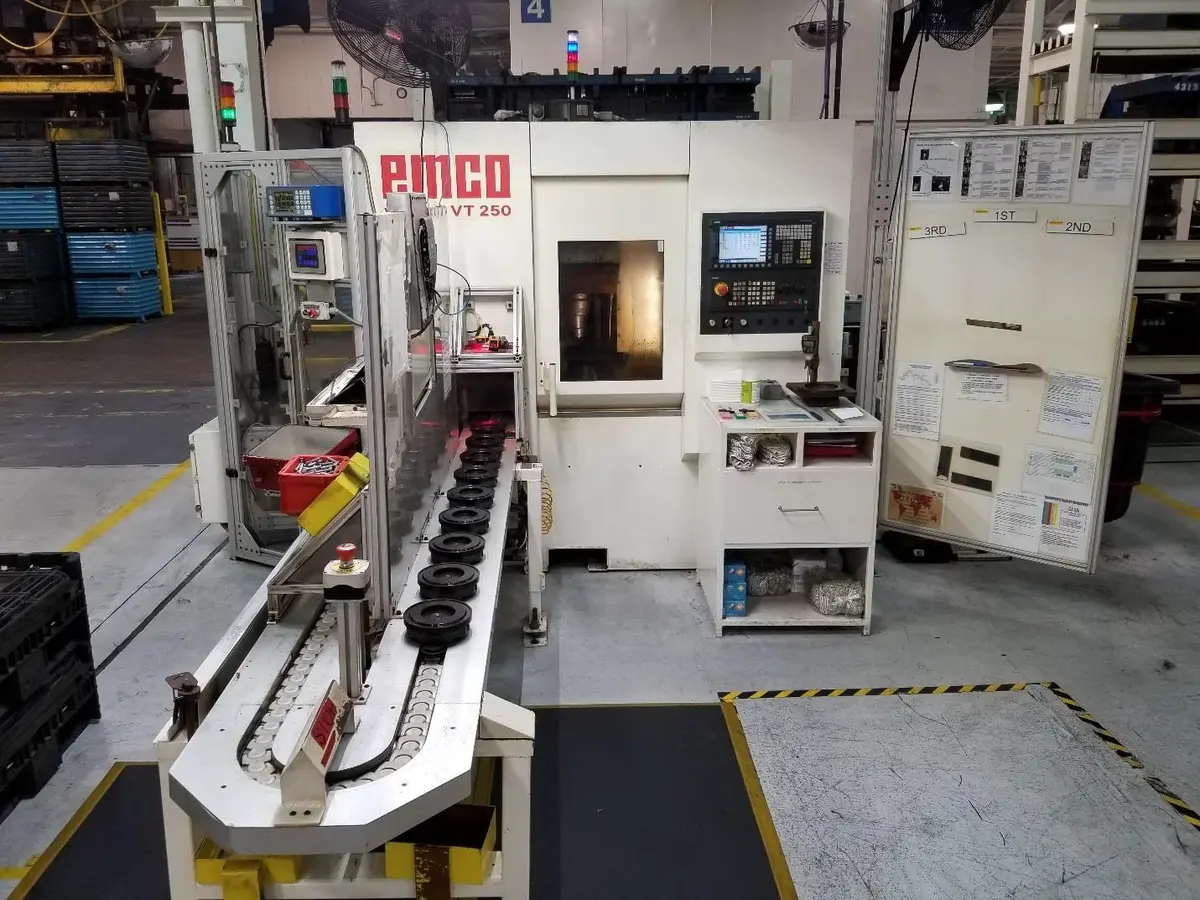

Emco VT250 Inverted Vertical Turret Lathe
New: 2012
Specifications:
Travels:
X-Axis: 20.9"
Z-Axis: 12.2"
Y-Axis: +/- 3.5"
Max Workpiece Dia: 7.87"
Max Length: 5.91"
Spindle Motor: 24 HP
Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Chuck Size: 10"
Max Swing: 10.2"
Tool Turret:
Stations: 12
Tool Holder Type: VDI40
Tool Storage: 24
Power: 8.5 kW (25% duty cycle)
Tool Speed: 4000 Max RPM
Power: 400 VAC, 50-60Hz, 20kVA
Machine Weight: 8400 Lbs
Cutting Hours: 12,100 (approx)
Equipped With:
Siemens Sinumerik 828D CNC Control
High Torque, High Power Spindle
Integrated Self-Loading Pickup System
Oversized Roller Guides
Coolant
Chip Conveyor
