2015 MAZAK INTEGREX I100S | Lathes, CNC (3-Axis or More)

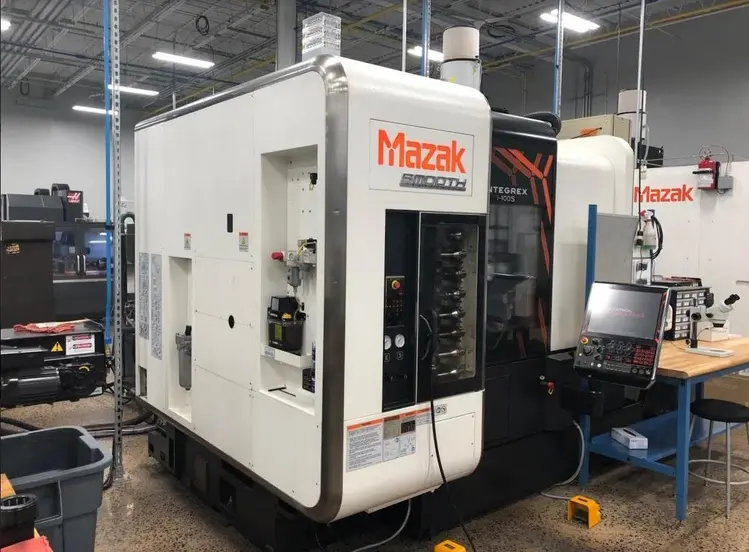

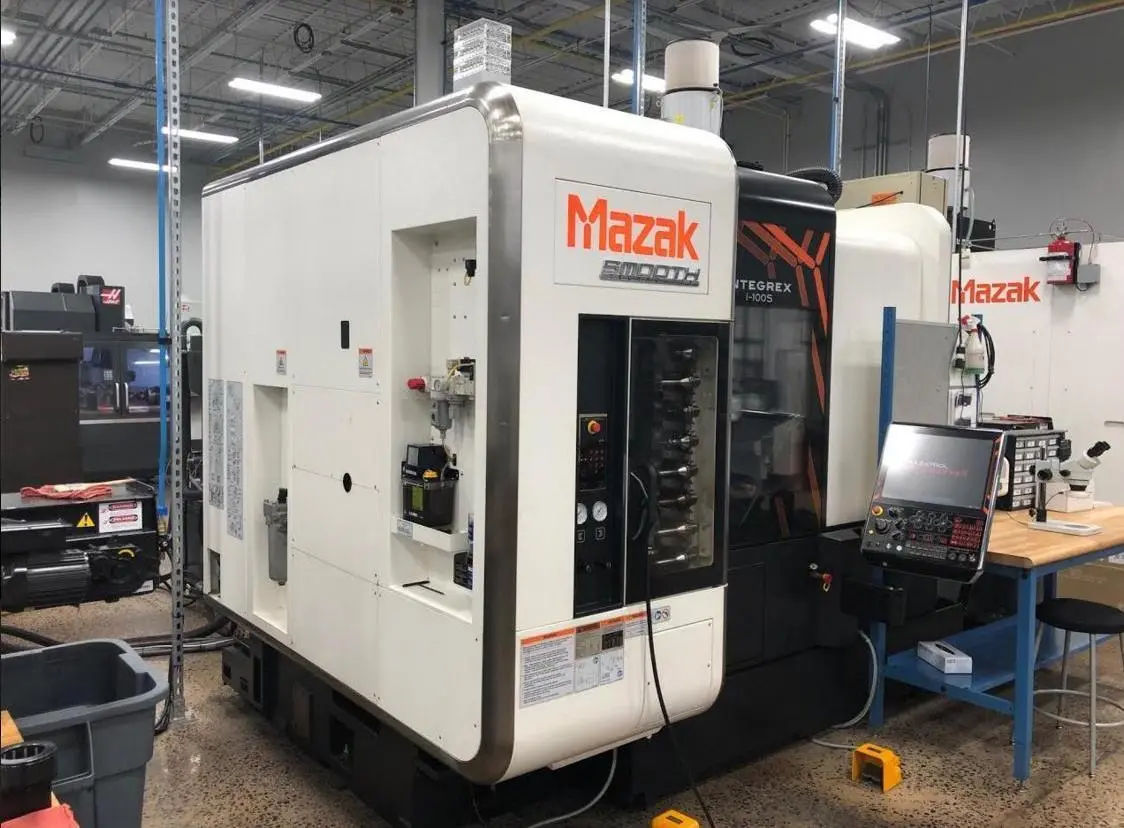

Mazak Integrex i100S CNC 6-Axis Multi-Tasking Turning Center
New: 2015 - 2 Available!

Specifications:
 Max Swing Over Carriage:        20.9"
 Max Machining Diameter:        19.7"
 Max Cutting Length:            33.6"
 Max Distance Between Chuck Jaws:    35.55"
 X-Axis Stroke:                17.72"
 X-Axis Below Spindle Center Line:    1.96"
 Z-Axis Stroke:                35.59"
 W-Axis Stroke (Second Spindle):    35.55"
 Y-Axis Stroke:                8.27", +/- 4.13"
 B-Axis Stroke: (0.0001 Degree incr.)    240 Degrees
 B-Axis Travel:                -30 to 210 Degrees
 C-Axis Control - Main/Second Spindle:    True C-Axis

 Main Spindle Chuck Size:        6" Diameter
 Main Spindle Bar Capacity:        1.65"
 Main Spindle Speed:            6,000 RPM
 Main Spindle Index - Prog True C:    0.0001 Degree
 Main Spindle Motor:            10/15 HP
 Main Spindle Power:            105 Ft Lbs
 Main Spindle C-Axis Clamping Torque:    1,315 Ft Lbs

 Second Spindle Chuck Size:        6" Diameter
 Second Spindle Speed:            6,000 RPM
 Second Spindle Index - Prog True C:    0.0001 Degree
 Second Spindle Motor:            10/15 HP
 Second Spindle Power:            105 Ft Lbs
 Second Spindle C-Axis Clamping Torque:    1,315 Ft Lbs

 Type of Turret:            1 Position
 Turret Positioning:            0.0001 Degree (B-Axis)
 Rotary Tool Spindle Motor:        7.5/10/12 HP
 Rotary Tool Spindle Speed:        12,000 RPM

 Tool Magazine Capacity:        36 Tools
 Tool Selection Method:            Random
 Tool-Tool Time:            1.3 Sec
 Maximum Tool Diameter (full)        3.54"
 Maximum Tool Diameter (adjacent empty)    5.12"
 Maximum Tool Length:            9.84"
 Maximum Tool Weight:            11 Lbs

Rapid Traverse:
 X/Y/Z-Axes:                1575 IPM
 W-Axis:                1181 IPM
 C-Axis:                555 IPM
 B-Axis:                40 IPM

Equipped With:
 Mazak Smooth HX Control
 Kitagawa BB-206 A5 Chucks
 Dual Spindle, Dual Chuck
 36 ATC Capto Tool Magazine
 Tool Holders
 Collet Chucks with Collets
 Chip Conveyor

Additional Options:
 19" Color CRT
 EIA/ISO, Additional EIA/ISO Functions
 3-D Coordinate Conversion
 G00 Slope Constant
 Cylindrical (G12) (EIA)
 Independent Rotation
 C Axis 0.0001 Increment (1st spindle)
 15 HP A2-05 Spindle Nose 1st Spindle
 15 HP Second Spindle C Axis 0.0001 Increment
 Chuck Air Blast 1st and 2nd Spindle
 Rotary Tool Speed 12,000 RPM
 B Axis Contouring 0.0001 Degree
 36 ATC Capto Tool Magazine
 6” Dia. Through Hole  Chuck for Second Spindle
 Kitagawa BB-206 Chuck
 Automatic Tool Eye
 Coolers for Ball Screws X, Z-Axes
 Automatic Parts Catcher with Ejector
 5-Axis Machining Package For Smooth hx
 Tool Radius Comp 5 Axis (G41.5/G42.5)
 Signal Tower (3) Lights
 Software Upgrade To Support Windows 8
 Standard 230 Volt Electrics
 Re-Threading Function
 ATS System True Length Collet
 Error Compensation G54.4
 EIA Dynamic, Compensation 1,  Work Setting
 Draw Bar Adaptor For Optional 2” Bar Capacity Package
 Fire Suppressant System
 Turret Air Blast
 Flood Coolant Nozzle
 213 PSI Through  Coolant
 X,Y,Z Pitch Error Compensation
