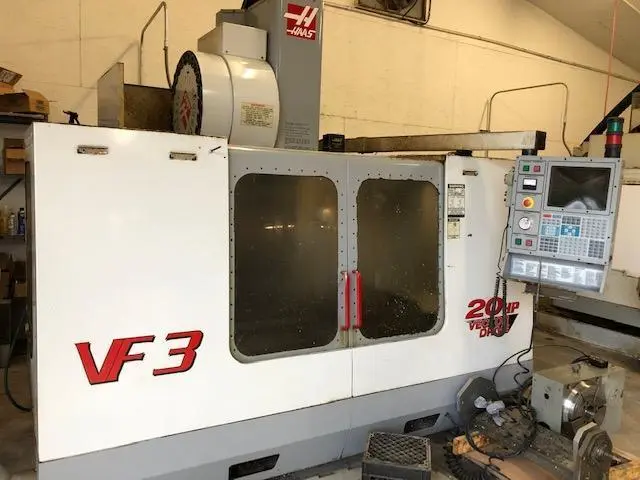

2000 Haas VF-3 VMC
40"x20"x25", 24 ATC, 20 HP, Chip Auger, HRT 310 Rotary Table Available, 9K Hours
Haas VF3 4-Axis Pre-Wired Vertical Machining Center
New: 2000
Specifications
Table Size 48" x 18"
Table Load Capacity 3500 lbs.
Table Top to Spindle Nose 4" - 29"
X-Axis Travel 40"
Y-Axis Travel 20"
Z-Axis Travel 25"
Spindle Taper CT # 40
Spindle Speed 0 - 7,500 RPM
Spindle Motor 20 HP (brushless)
Tool Magazine Capacity - Sidemount 24 Position ATC
Rapid Traverse 710 IPM
Machine Dimensions 118"x110"x120"
Machine Weight 12,500 lbs.
Equipped with:
24 Station Swing Arm ATC
4th Axis Ready
(HAAS HRT-310(Brush) Available for additional cost)
Remote Jog Handle
Programmable Coolant
3.5" Floppy Disk Drive
Chip Auger
2 Speed Geared Head
Brushless Servo Motor
Vector Drive Spindle
Quick Code
Macros
Rotation and Scaling
Rigid Tapping
RS-232 Port Interface
Coolant System
All Available Manuals
