Mazak AJV 25/404 Double Column VMC; 2 Pallet Changer, M-32 Control, 40" x 20" x 18" Travels, Chip Conveyor

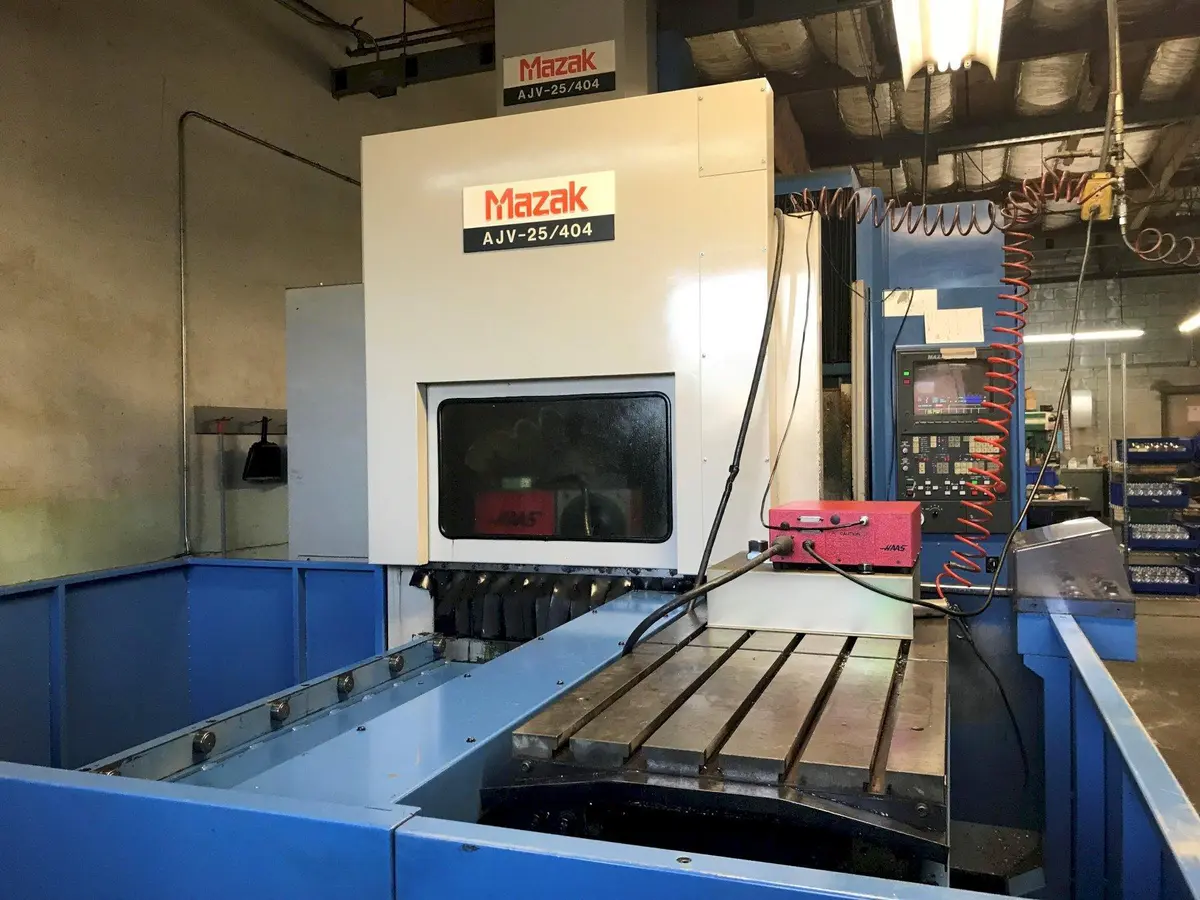

Mazak AJV 25/404 Double Column CNC Vertical Mill
New: 1991
Specifications:
Travels:
X-Axis: 39.37"
Y-Axis: 20"
Z-Axis: 18"
Spindle Speed: 10,000 RPM
Spindle Motor: 25/20 HP
Spindle Taper: #40
Tool Magazine: 40 ATC
Table Size: 48.8" x 19.68" (x2)
Column Distance: 25.59"
Table Load Capacity: 1,760 Lbs
Table Top to Spindle: 7.87" - 26"
Equipped With:
Mazatrol M-32 CNC Control
(2) Pallet CHanger
40 Position ATC
Chip Conveyor
Approx Dimensions 231"x108"x120"
Approx Weight 18,960 Ibs.
click here for video: https://www.dropbox.com/s/smz5ubqzqn6ph8b/IMG_0141.MOV?dl=0
