1996 OKUMA LU-45-1500 | Lathes, CNC (3-Axis or More)

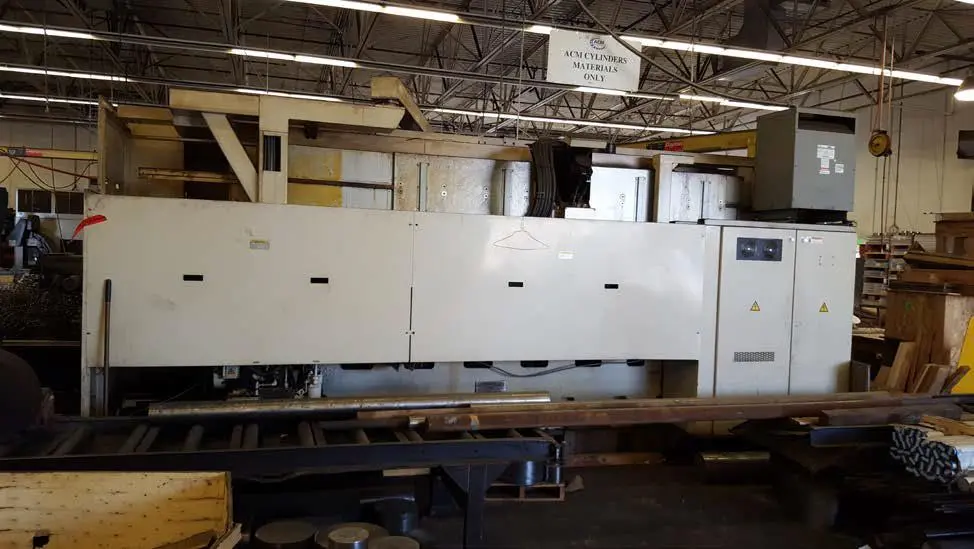

Okuma LU-45/1500 Twin Turret CNC Turning Center
New: 1996

Specifications:
 Swing Over Bed:         33.07"
 Swing Over Saddle:         21.85"
 Distance Between Centers:     78.74"
 Maximum Turning Diameter:     25.98"
 Maximum Work Length:         78.74"
 X-axis Travels:         Upper Turret 17.32"/ Lower Turret: 12"
 Y-axis Travels:         Upper Turret 82.28"/ Lower Turret 79.72"
 Speed Range:             12-2800 Rpm
 Number Of Speed Ranges:     4 Ranges
 Spindle Nose:             Jis A2-11
 Spindle Bore Diameter:     4.33"
 Diameter At Front Bearing:     5.91"
 Turret Type:             Upper Turret V12 / Lower Turret V10
 Number Of Tool Stations:     Upper Turret 12 / Lower Turret 10
 Tool Shank Height:         1.26" X 1.26"
 Boring Bar Shank Diameter:     2.48"
 Turret Indexing Time:         0.7 Seconds (lift Up)
 Rapid Traverse Rate (x,z):     591 IPM / 787 IPM
 Cutting Feed Rate:         0.0001-40.0 IPM
 Tailstock Quill Diameter:     5.12"
 Tailstock Quill Bore Taper:     Mt 5 (built-in)
 Tailstock Quill Travel:    6.69"
 Spindle Motor:         60/50 HP
 Coolant Pump Motor:         0.7 HP
 Power Kva:             54.3
 Machine Height:         119.69"
 Machine Floor Space:         238.58" X 111.49"
 Machine Weight:         45,540 Lbs


Equipped With:
-Okuma OSP7000L CNC Control
-21" Chuck
-Dual Turret
-Tailstock
-Chip Conveyor

Spindle Drive Repaired January 2019
New Fiber Optic Cable March 2019
In Daily Use Until Late 2018
