2017 OKUMA L300-MYW-E

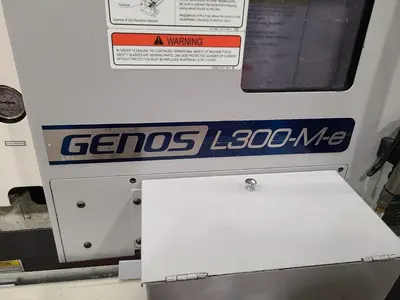

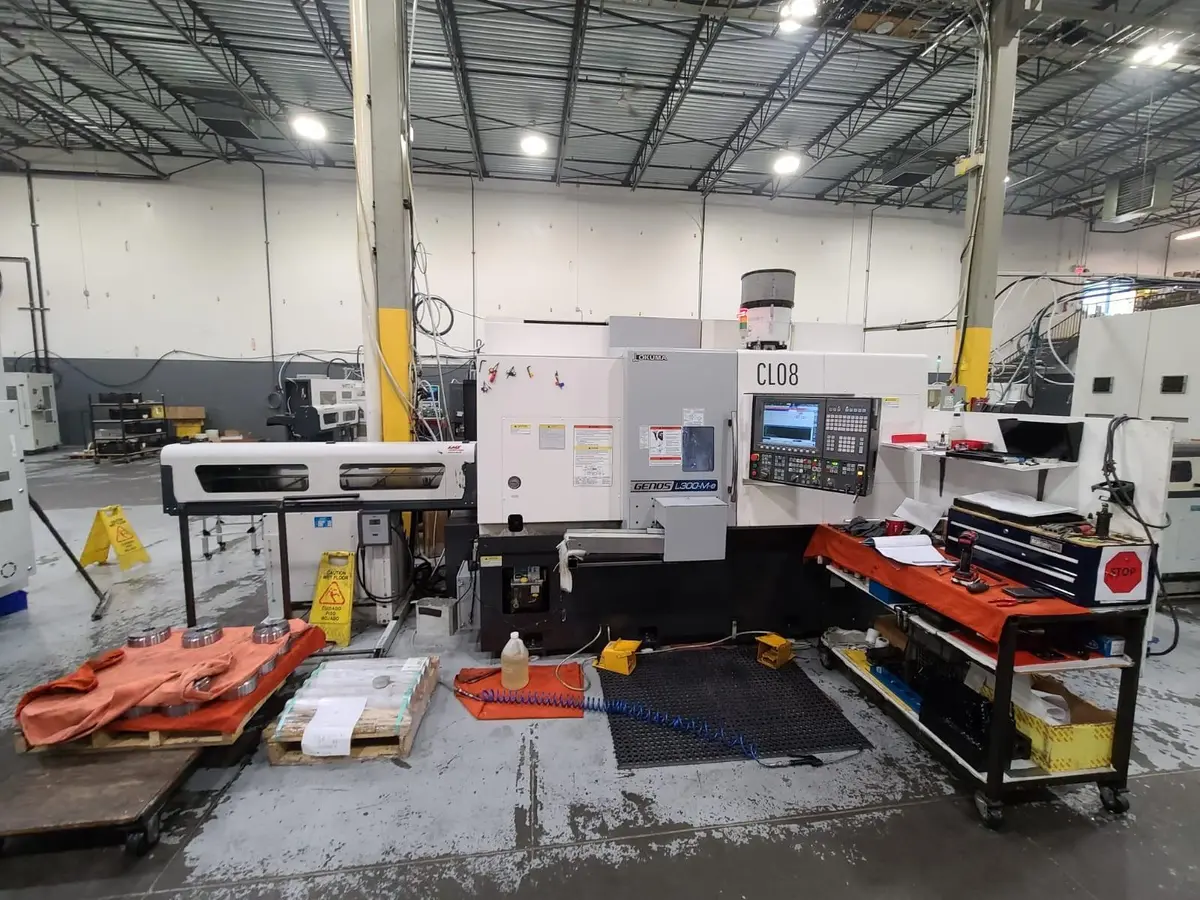

Okuma L300-MYW-e CNC Turning Center
New: 2017 - only 1500 cutting hours!

Specifications:
 Max Turning Diameter: 11.81"
 Max Swing: 20.47"
 Max Turning Length: 17.71"
 Bar Capacity Main Spindle: 3.15"
 Rapid Rates Z/X/Y: 984/787/394 IPM
 Spindle Nose: A2-8/Main, 140 Flat/Sub
 Spindle Speed Main Spindle: 3,000 RPM
 Spindle Motor Main Spindle: 20 HP
 Spindle Speed Sub Spindle: 6,000 RPM
 Spindle Motor Sub Spindle: 20 HP
 Spindle Bore, Sub Spindle: 1.69"
 Turret Type: 12 Station Rotary
 Y-Axis Movement: 3.94" Stroke
 Rotary Tool Speed: 4,500 RPM 7 HP
 Rapid Rate for C-Axis: 200 RPM

Equipped With:
 Okuma OSP P300 LA CNC Control
 Thinc Control Technology
 3D Virtual Monitor Package
 Off-Center Turning Function
 Swing Down Tool Setter
 Chip Conveyor, Side Discharge
 Cut off Tool Holder
 Parts Catcher
 Barfeeder
 Prepped for High Pressure Coolant
 Box Way Construction
 All Standard OD & ID Tool Holders
 Kitagawa 10" 3-Jaw Chuck with 2.75" Thru Hole
 Kitagawa 6" 3-Jaw Chuck
 Assorted soft jaws, actuator and drawtubes
 (1) Radial & (3) Axial Live Tool Holders
 All Available Manuals
