2001 CITIZEN L(5) 20 VII | Automatic Screw Machines, Swiss Type

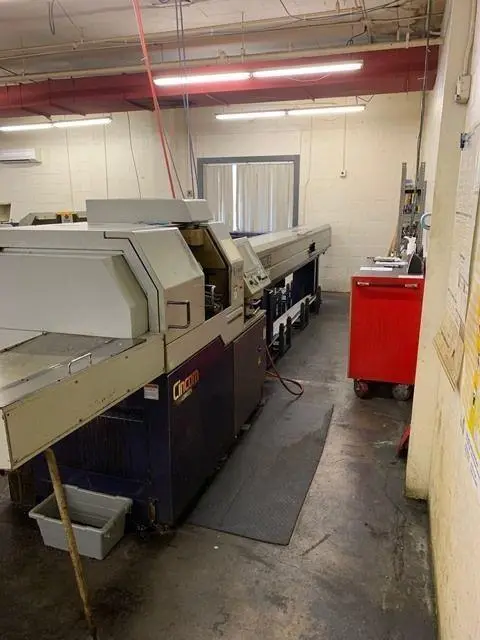

Citizen L(5) 20 VII CNC Swiss Lathe
New: 2001

Specifications:
CNC Control:                                     Cincom System L (Windows)
                                                  (Mitsubishi 635)
Max. Machining Diameter:                         0.812"
Max. Machining Length per one Chuck:             8.1"
Max. Drilling Diameter:                          up to .394"
Spindle Speed:                                   200 - 10000 rpm
Main Spindle Indexing:                           1 degree  (C-axis option)
Back-work:
   Max. Chucking Dia. of Pick-off Spindle:       .812"
   Pick-off Spindle Speed:                       200 - 8000 rpm
   Pick-off Spindle Motor:                       2 hp
Rotary Tool:
   Rotary Spindle Speed:                         200 - 5000 rpm
   Rotary Tool Motor:                            .5 hp
Number of Tools Mounted:                         16
   OD / Front ID / Back ID / Live Tools:         6/3/3/4
Power Consumption:                               6 Kva
Required Floor Space:                            65" x 37"
Approx. Weight:                                  3900 lbs.

Equipped With:
CAV 20L-IS Bar Loader, 12’ Cap
Full C-Axis on Main Spindle
Cool Blaster 4-Line High Pressure Coolant System

click here for video: https://www.dropbox.com/s/mmkq4o6ayg2kgcq/Citizen%20L20VII%20CNC%20Swiss%20Lathe%202001.mp4?dl=0
