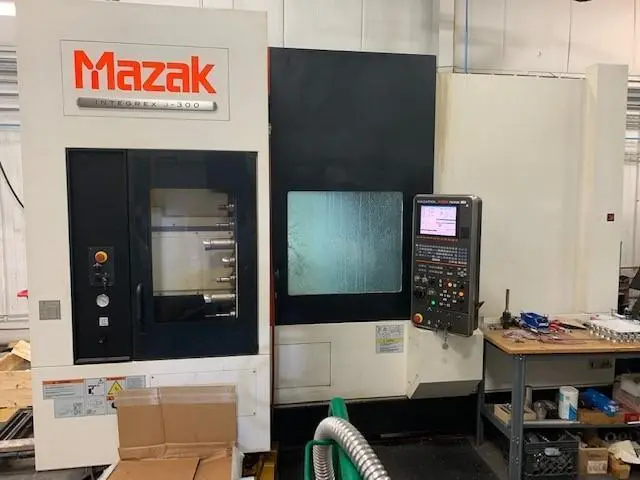

2012 Mazak Integrex J-300 5-Axis CNC Turning Center
Mazak Integrex J-300 5-Axis CNC Turning Center
New: 2012
Specifications:
Maximum Swing: 26.77"
Max Cutting Diameter: 19.69"
Max Cutting Length: 24.76"
X-Axis Travels: 24.21"
Y-Axis Travels: +/- 4.92"
Z-Axis Travels: 27.36"
B-Axis Tilt: 220 Degrees
CAxis Spindle Rotation: 0.0001 Degree
Spindle Nose: A2-8
Spindle Bore: 3.54"
Bar Capacity: 3.15"
Spindle Speed: 4,000 RPM
Spindle Motor: 20/25 HP
Tool Changer: 20 Tool
Milling Spindle Speed: 12,000 RPM
Milling Spindle Motor: 30 HP
Spindle Taper: MT #5
Tailstock Travels: 40.39"
Equipped With:
Mazak Mazatrol Matrix Nexus Control
10" 3-Jaw Hydraulic Chuck
C-Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis for Off-Center Machining
B-Axis Pendulum Head
Chip Conveyor
Tailstock
High Pressure Coolant
Chip Conveyor
Variable Offsets 600
Spiral Programming
Coordinate Rotation & Scaling
Total Cut Time: 11,800 Hours
Weight: 27,800 Lbs
