2017 MAKINO A61NX-5E | Machining Centers, Horizontal, (5-Axis or More)

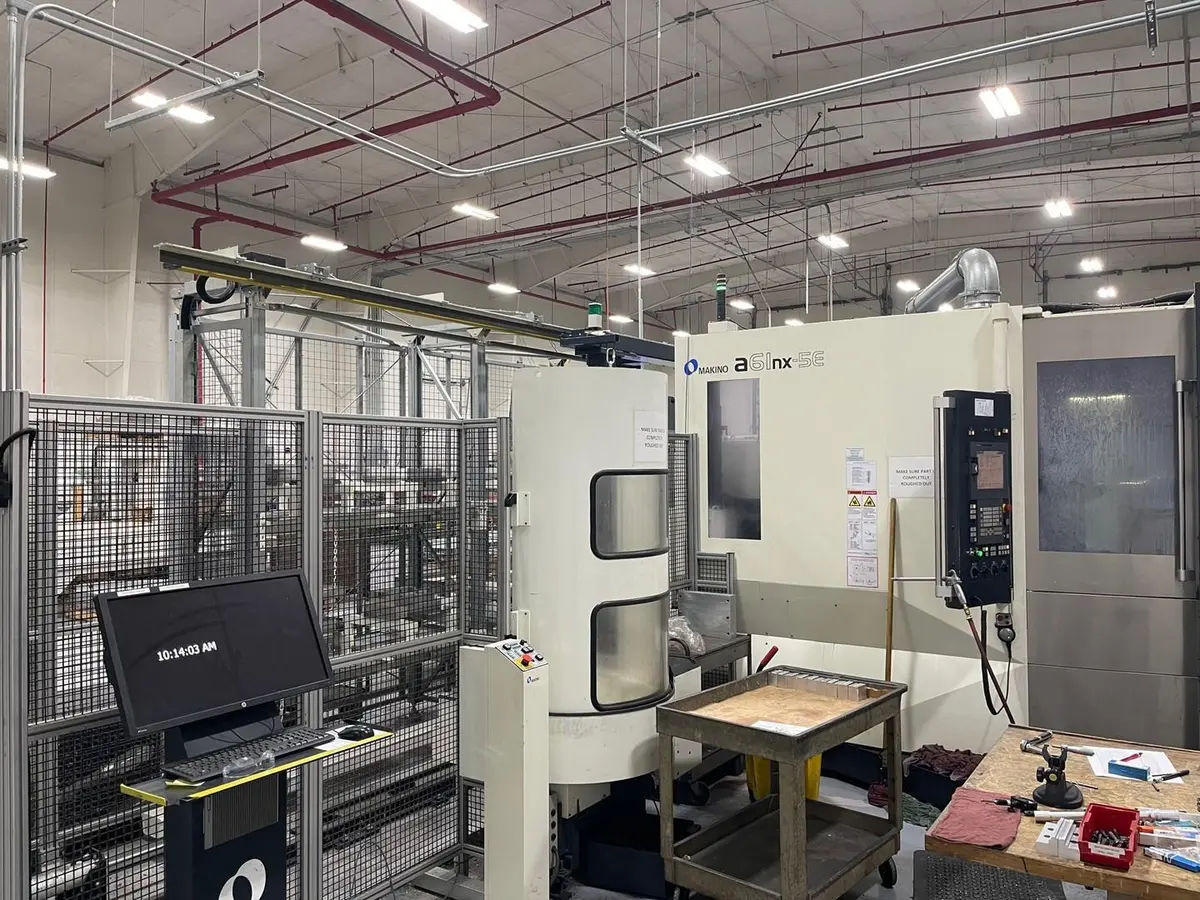

Makino A61NX-5E 5-Axis Horizontal Machining Center w/ FMS Cell
New: 2017

Specifications:
 Travels:
  X-Axis: 28.7"
  Y-Axis: 28.7"
  Z-Axis: 26.8"
  B-Axis: 290° (-110° ~ +180°) Direct Drive
  C-Axis: 360° Direct Drive
 Spindle Speed: 24,000 RPM
 Spindle Taper: HSK A63
 Rapid Traverse: 1,890 ipm (X&Y), 1,693 ipm (Z)
 Cutting Feedrate: 1,890 ipm (X&Y), 1,693 ipm (Z)
 Maximum Workpiece: 27.6" ø x 15.75" (with limitations)
 Coolant Pressure: 1000 PSI
 ATC Capacity: 313
 Pallet Size: 15.75" (x8)
 Maximum Tool Diameter: 6.7"
 Maximum Tool Weight: 26.5 Lbs


Linear Pallet Pool System (MMC2):
-Rail Guided Vehicle
-Pallet Stocker
-Guide Rail and Trolley
-Floor Rail and Optical Communications
-RGV Controller
-Worksetting Station
-PC Based System Controller
-Guard Fence
-Pallet Stocker (4x2 Level)
-Load/Unload Station

Equipped With:
-Pro 5 CNC Control
-MP Max Software
-Linear Pallet Pool System w/ 8 Pallets and Load/Unload Station
-MMC2 Upgrade to 4-Spigot Pallet Configuration (x8 Pallets)

Standard Features:
-Super GI.4 Control
-Structural Aerospace Package
-24K RPM Spindle
-HSK A63 Spindle Interface
-313 Tool ATC
-1000 PSI Thru SPindle Coolant & Air
-Chip Conveyor BDW1030
-Center Trough Chip Conveyor


-Tool Center Point Control for 5-Axis Machining
-High Speed Smooth TCP
-3-Dimensional Cutter Compensation
-Rotary Table Dynamic Fixture Offset
-60 Hz/460V

Machine Options:
-Rigid Tap
-Y-Axis Stroke 730mm Spec. High Column
-B,C-Axis Rotary Table
-Scale Feedback X, Y, Z-Axis 0.05 Micron
-Feed Axis Acceleration X/Y = 1G/1G
-Automatic Greese Supply Device
-Pallet Changer
-Safety Cover
-APC Door Interlock
-Random Pallet Selection
-Pallet Clamp Confirmation Function
-WHP 400mm Square (2 Pallets)
-Eight Nozzle Coolant
-Overhead Shower Coolant System (14 Nozzles)
-Terrace Washing Coolant
-Water Soluble Coolant
_Automatic Splash Guard
-Operator Door Lock
-250mm Joint Mount for Mist Collector
-Air Dryer
-Automatic Fire Extinguisher Interface
-Portable Manual Pulse Generator w/ Handle Enable Button
-Signal Light 3-Layer
-Operator Step
-Splash Guard
-UL Electrical Specification
-Fast Ethernet Interface
-Workpiece Setting Function (Including Tilting Working Plane Indexing Command)

-Linear Interpolation Type Positioning
-Inverse Time Function
-1000 Registered Programs
-Data Center Storage
-Tool Offsets Pairs (99)
-Tool Offset Memory Type A
-Additional 48 Work Offsets
-Custom Macros (600 Common Variables)

-Full set of manuals

New Purchase Price (after negotiation): $1,600,000.00

For more information:
https://www.makino.com/en-us/machine-technology/machines/horizontal-5-axis/a61nx-5e
https://www.makino.com/en-us/machine-technology/automation/linear-pallet-pool-system-mmc2

Videos and Additional pictures available here:
https://www.dropbox.com/sh/afo715puqgll28s/AAB5ctt1Ejc9yis8wsL88gAHa?dl=0
