2005 FIDIA K 414 | Machining Centers, Gantry (incld. Bridge & Double Column)

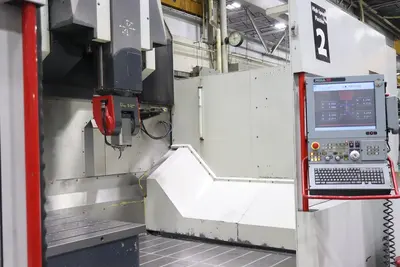

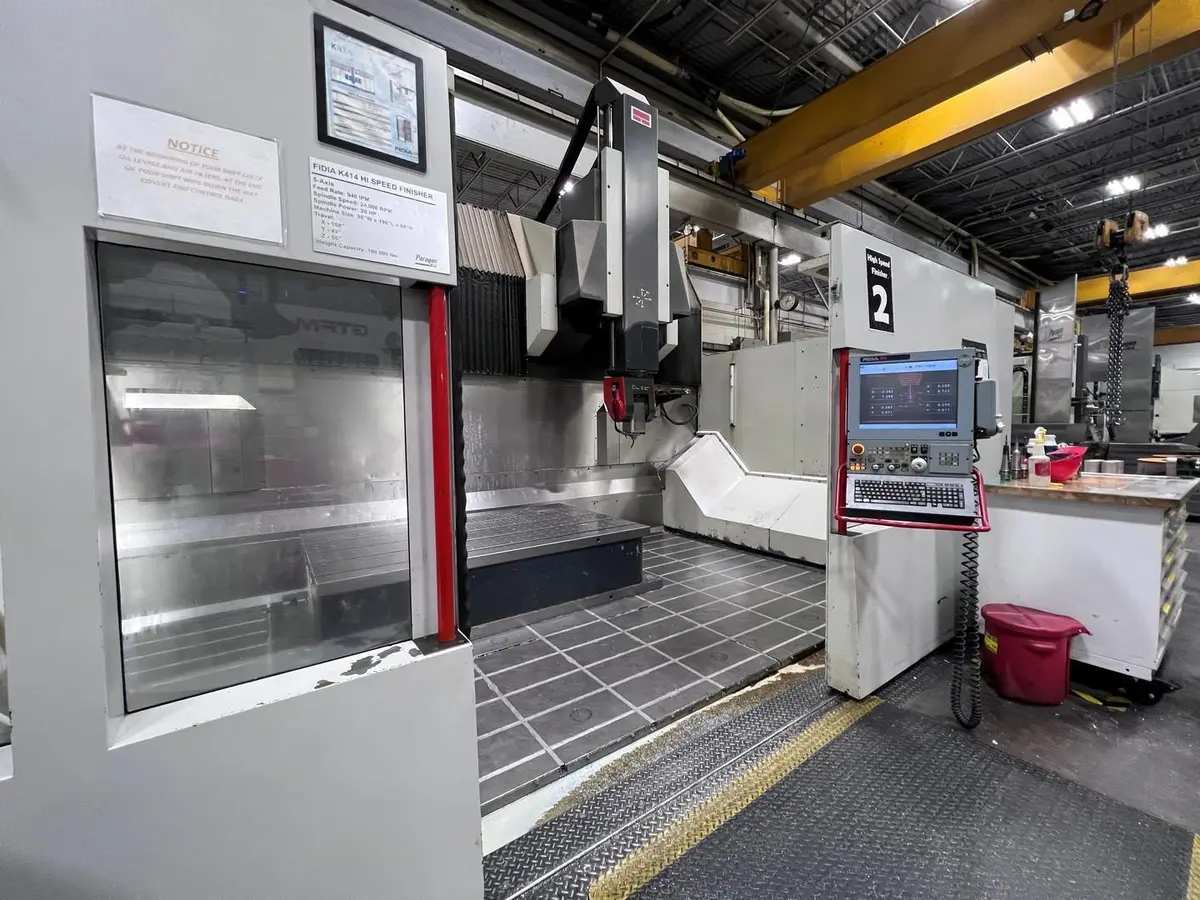

Fidia K414 5-Axis Machining Center
New: 2005

Specifications:
 Travels:
  X-Axis: 168"
  Y-Axis: 49"
  Z-Axis: 55"
  A-Axis: +110 - 94 degrees
  C-Axis: +200 - 200 degrees
 Daylight Under Spindle: 66-72"
 Table Size: 198" x 118"
 Table Weight Capacity: 100,000 lbs
 Rapid Traverse Rate: 1100 IPM
 Feed Rate: 940 IPM
 Spindle Taper: HSK 63
 Spindle KW: 55 KW
 Tool Changer: 84
 Spindle Speed: 24,000 RPM
 Spindle Power: 30-70HP
 Weight Capacity: 100,000 LBS

Equipped With:
 Fidia C-20X Control - Updated to WS5 with Touch Screen in 2021
 Continuous 5+2 Axis Head
 Linear Ways
 High Pressure Coolant Thru Spindle (1000 PSI)
 Wired for Probe
 Laser Tool Alignment
 Tool Life M  anagement Software
 Special Fidia Logic
