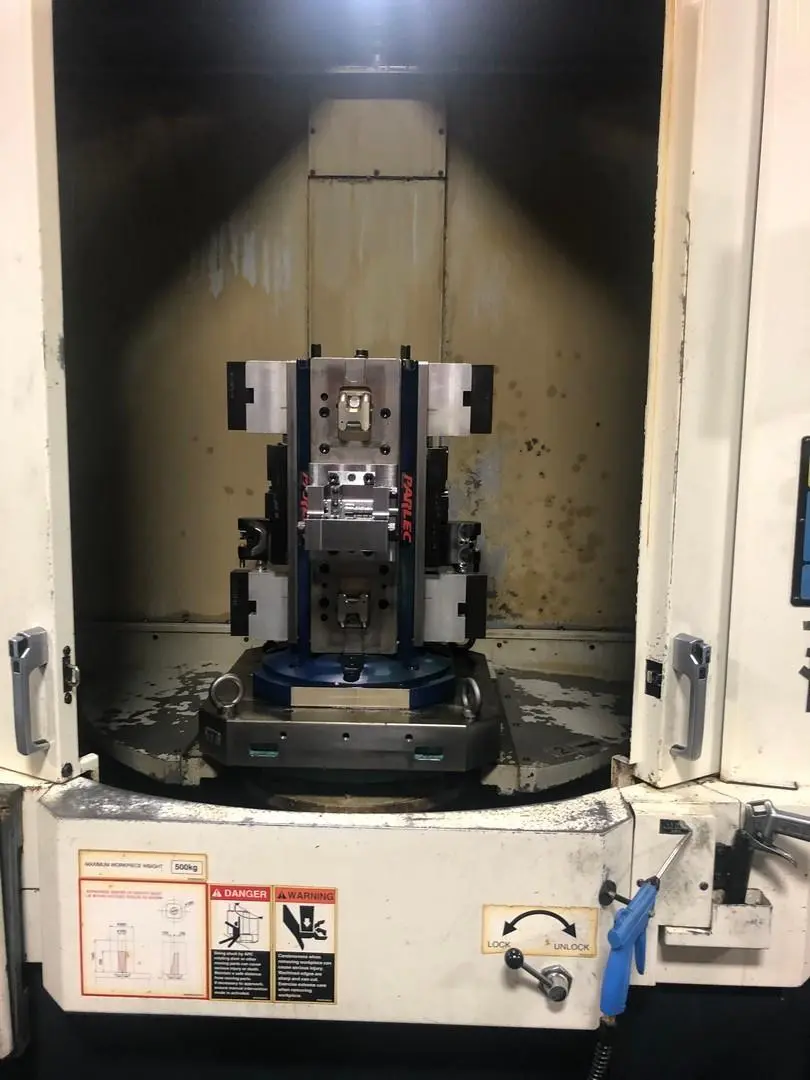

2008 Makino A61 CNC Horizontal Machining Center
Makino A61 CNC Horizontal Machining Center
New: 2008
Specifications:
Travels:
X-Axis: 28.7"
Y-Axis: 25.6"
Z-Axis: 28.7"
Table Positioning: 360,000 positions (.0001 degree)
Spindle Center to Pallet Top: 3.1" - 28.7"
Spindle Nose to Pallet Ctr: 2.75" - 31.5"
Spindle Drive Motor: 25 HP
Spindle Speed: 14,000 RPM
Spindle Taper: CAT 40
Tool Changer: 134 ATC
Pallet Size: 19.7" x 19.7"
Table Payload: 500 Kg
Equipped With:
Makino Professional 5 CNC Control
NC Rotary Table
Data Server
Pallet Changer w/ Random Pallet Selection
High Pressure Coolant Thru Spindle 300 PSI
Overhead Shower Coolant System
Automatic Splash Guards
Lift up Chip Conveyor
Daikin Automatic Lubrication Unit
GI .3 Control
Custom Macro
Automatic Air Blower Nozzle
Air Dryer
Helical Interpolation
Manual Pulse Generator
200 Tool Offset
Macros
Probing: Automatic Renishaw System (Renishaw MP700 and NC4 ATLM System)
