2013 TOSHIBA BP-150.R22

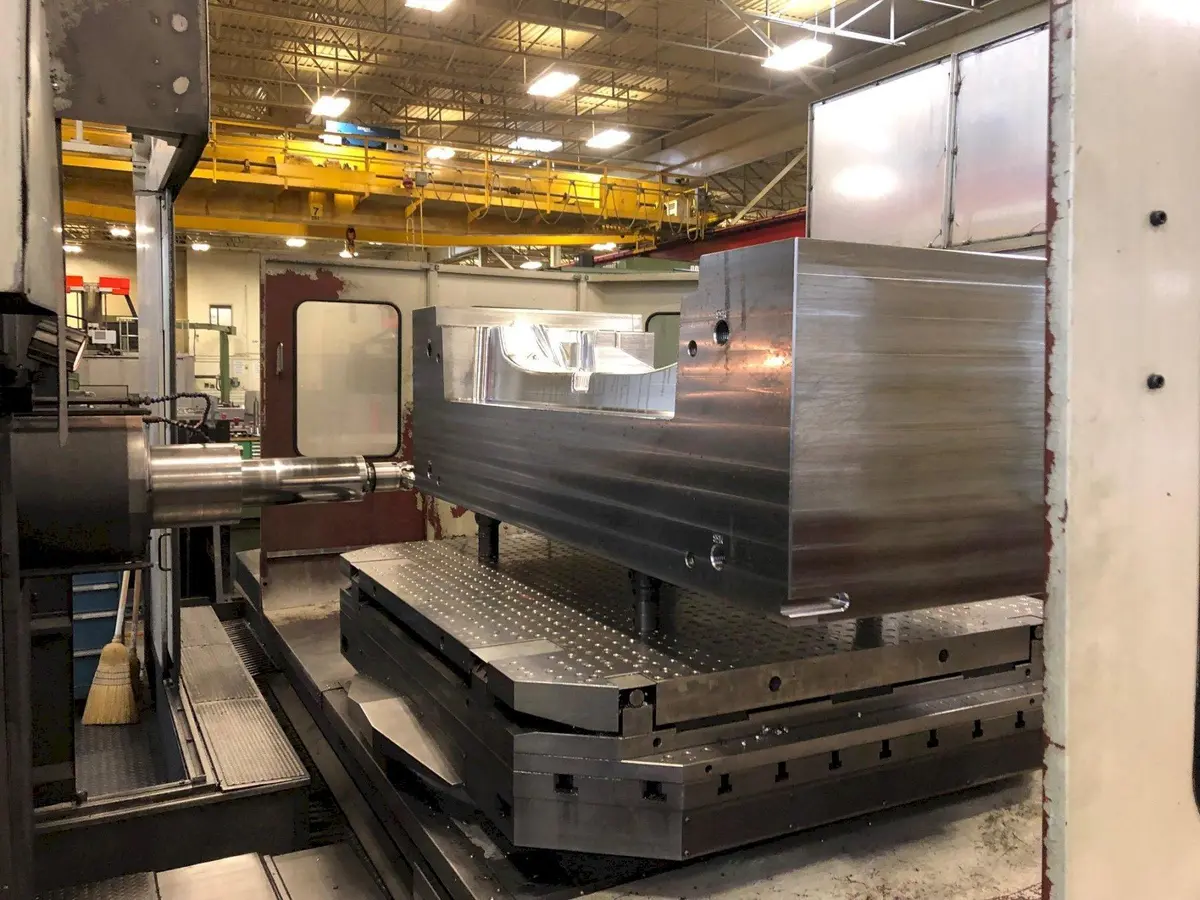

Toshiba BP-150.R22 CNC Horizontal Boring Mill
New: 2013

Specifications:
 Travels:
  X-Axis: 160"
  Y-Axis: 100"
  Z-Axis: 60"
  W-Axis (Quill): 28"
 Spindle Diameter: 5.9"
 XYZ Rapid Traverse: 393 IPM
 Spindle Taper: ISO #50
 Spindle Speed: 2,500 RPM
 Spindle Power: 37 kW
 Spindle Gearbox: 2 Speed (Low/High)
 Chiller Unit: Spindle Oil
 Table Weight Capacity: 44,000 Lbs
 Table Size: 86.6" x 70.8"
 Coolant Pump Max Pressure: 13 gal/min
 Coolant Tank Capacity: 110 Gal
 Tool Changer: 60 ATC

Equipped With:
 Tosnuc 999 CNC Control
 60 Position ATC
 Chip Conveyor
 10" Dia. Milling Quill Extension
 Renishaw RMP60 Wireless Touch Probe

Documentation:
 1. Foundation Prints
 2. Maintenance Manual
 3. Parts Manual
 4. Mechanical Prints
 5. Electrical Prints
