2011 FLOW WMC2 4060 | Waterjet Cutters

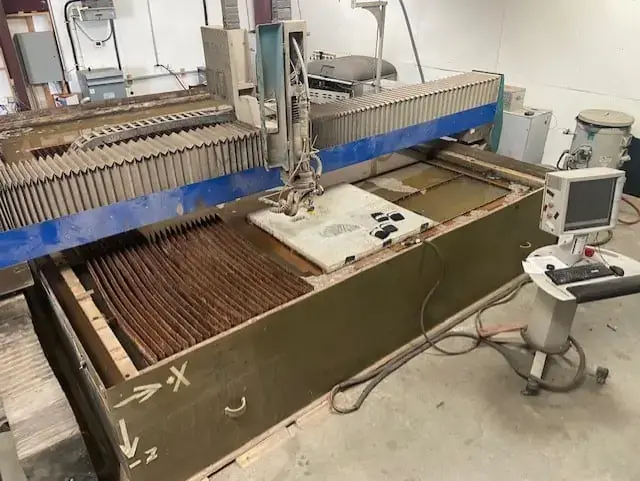

Flow WMC2 4060 CNC Waterjet Cutting Table
New: 2011

Specifications:
Table Width:                  13.58'
Table Length:                 20'
Tank Size:                       13.1' x 19.69'
Pump:                            100 HP
Max Cutting Pressure:   87,000 PSI
Power Requirement:      460-480/3/60
Control:                         Flowmaster PC

Note:  Rebuilt and Still in Operation
Several parts were cut at +/- .003" deviation on 13' diameter part.
This machine was purchased for an Aerospace job of very high tolerance.


Equipped With:
15" Color Touch Screen
Abrasive 600 Lbs Garnet Hopper with Low Level Warning
Calibration Device for 5-Axis Head
Controllable Water Level For Quiet Cutting
Dual 50 HP Pumps
Dual Intensifier
Dynamic Taper Compensating and 3D Cutting Head
Ebbco Closed Loop Chiller
Electronic Manuals Available
Flow Rebuild Tool Kit for High Pressure Pump
Flow Xpert 3D PC Based Control (Roll-Around Base)
Import DXF, TIF, BMP, JPG, and other CAD Files
Nesting and Graphics
Paser 4 Cutting System
Replaceable Slats
Windows XP / Delta Tau Controller
