2021 OKUMA | Miscellaneous

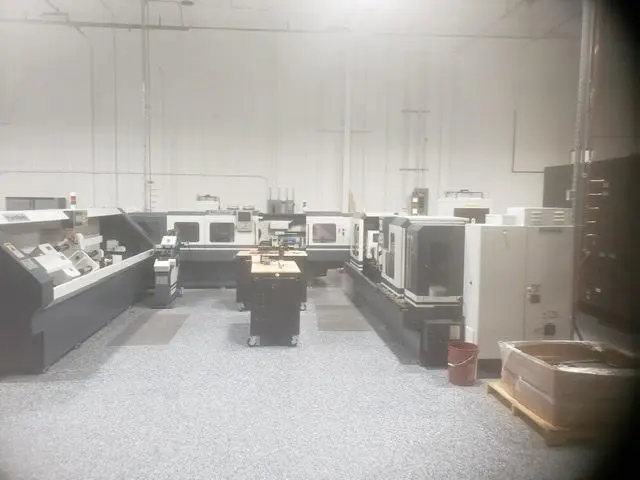

Okuma & Precihole Automated Barrel Cell with Deep Hole Gun Drilling

New: 2021

Step 1: Incoming Inspection
Hardness Gauge

Step 2: Gun Drilling:
Precihole GVN 12C/4 – 600

Step 3: Reaming
Precihole PRVN12/2-600

Step 4: Rifling
Precihole BRVN 12/1-600

QA – Rifling
Keyence Camera, Air Gauge Control, Air Gauges

Step 5: OD Turning
Okuma LU3000 x2

QA – OD Turning
Vici Vision

Step 6: Feed Ramps
Okuma L3000

QA – Feed Ramps
Go/No Go Gauging + Surface Finish Gauge

Automation:
QA – Automation Step 4 Rifling
QA – Automation Step 5 OD Turning

Cost as built:
Total Manual: $2,024356.25
Total Automation: $655,925.00
Grand total: $2,680,281.25
