2021 PRECIHOLE GVN 12 C/4-800

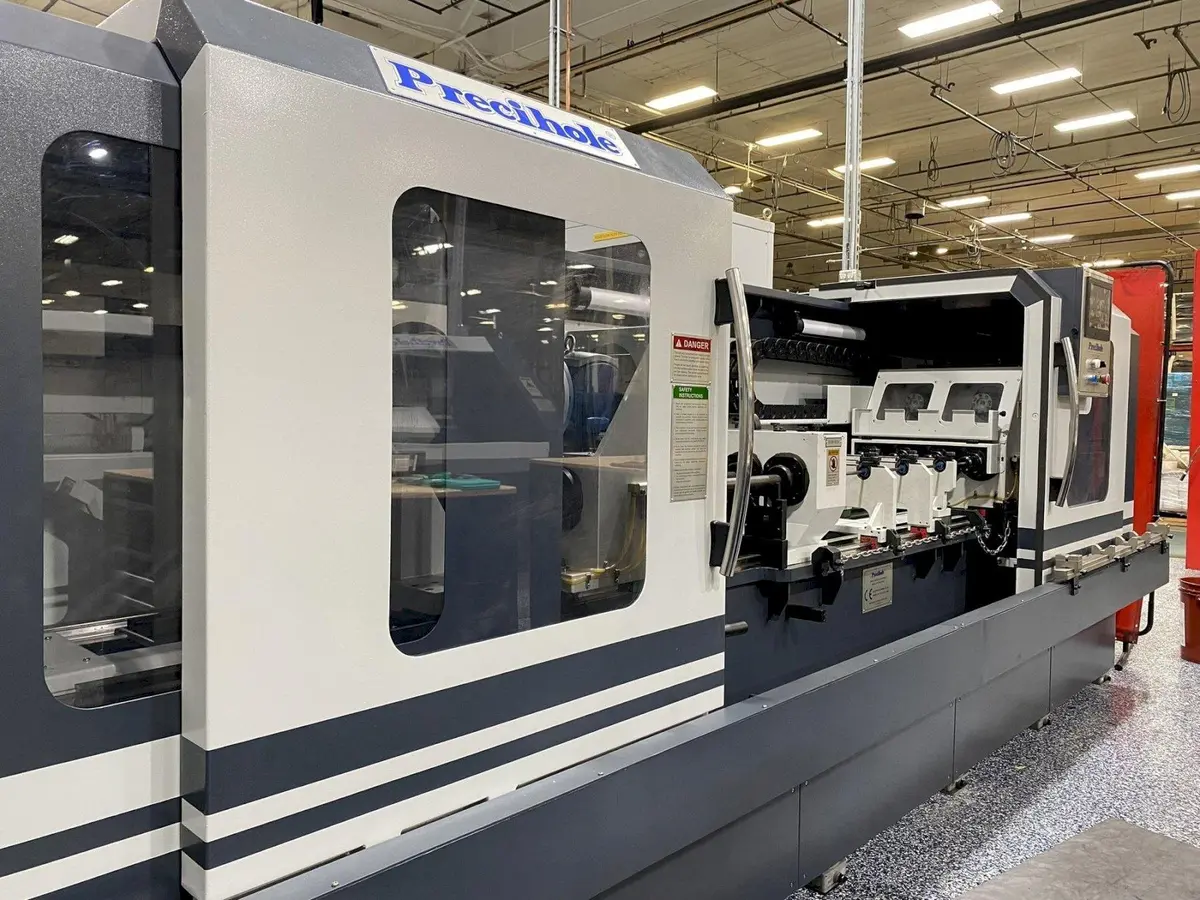

Precihole GVN 12 C/4-800 4-Spnidle Deep Hole Drilling Machine
New: 2021 - Brand New Machine!

Specifications:
 Max Diameter Hole Drilled: 0.5"
 Max Drilling Depth: 24"
 # of Spindles: 4
 Weight: 7500 Lbs
 Reaming Diameter Range: 0.15" - 0.5"
 Barrel OD Range: 0.47" - 2.16"
 Max Component Weight: 66 Lbs
 Rifling Feed Range: 0-20 IPM
 Spnidle Motor Drive: 2 HP
 Coolant Tank: 300 Gallon

Equipped With:
 Mitsubishi/Siemens Touch Screen PLC
 4-Spindle
 (3) Jaw Chuck Barrel Clamping System
 Counter Rotation
 High Pressure Coolant / Filtration
 Multiple Tool Steadies To Provide Tube Support
 Hydraulic Cone Arrangement For Barrel Blank Clamping
 Component Counter Setup, Moving Tool Steadies
 Chiller (dip type)
 Chip Conveyor (rear exit)
 300 Gallon Coolant Tank
 460/3/60v Electrics

*Robot and Automation Ready
*Brand New Machine - Installed but never used!
