2021 Precihole BRVN 12/1-800 Single Spindle Button Rifling Machine - Brand new!

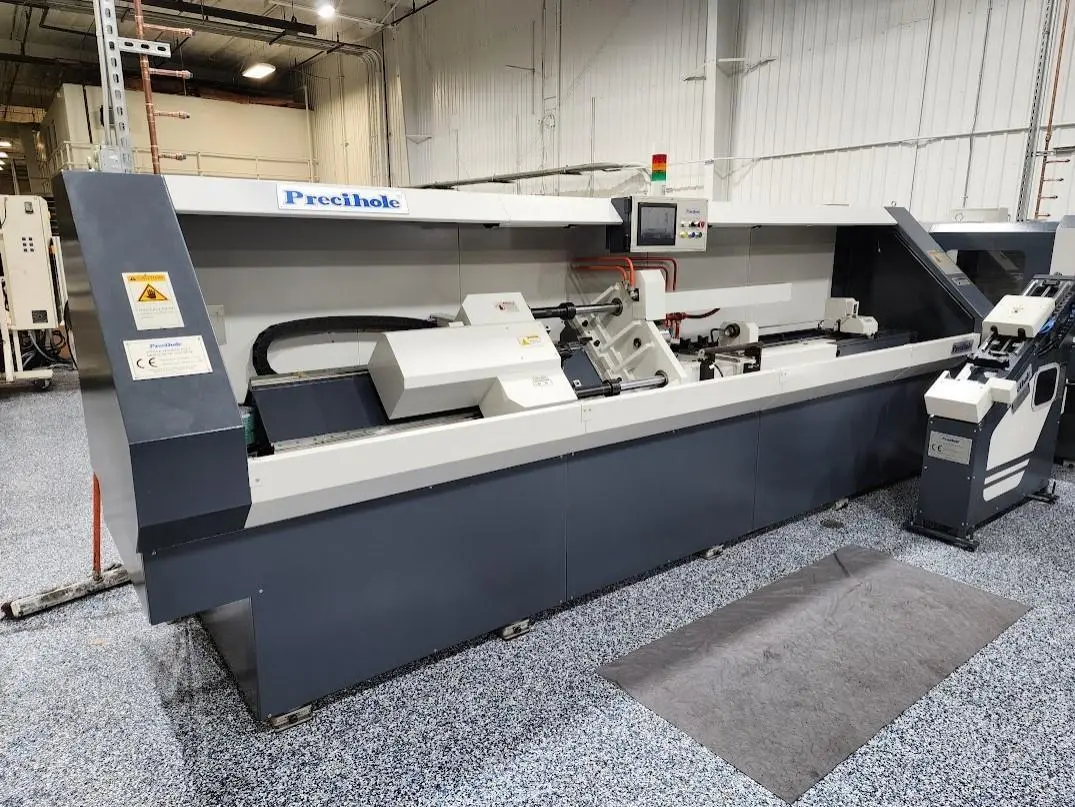

Precihole BRVN 12/1-800 Single Spindle Button Rifling Machine
New: 2021
Specifications:
Rifling Size Range: 0.1" - 0.5"
Number of Spindles: 1
Maximum Rifling Depth: 24"/40"/48"/60"
Barrel OD Range: 0.47" - 2.16"
Barrel Clamping System: 3-Jaw Chuck
Max Component Weight: 66 LBS
Rifling Feed Range: 0 - 80 IPM
Rifling Pull Force: 10 TONS
Hydraulic Tank Capacity: 26 GALLONS
Supply Voltage: 460V 3PH 60Hz
Overall Weight: 7,300 LBS
Equipped With:
Mitsubishi/Siemens Touch Screen PLC Control
Precision Chuck for Barrel Location & Clamping
Used Specially formulated Rifling Oil for Expansion
Automation for Button Insertion and Handling
Safety Guards w/ Light Curtains, Hydraulic Cylinders
*Robot & Automation Ready
*Brand New Machine (cost $260k), Installed/Never Used
