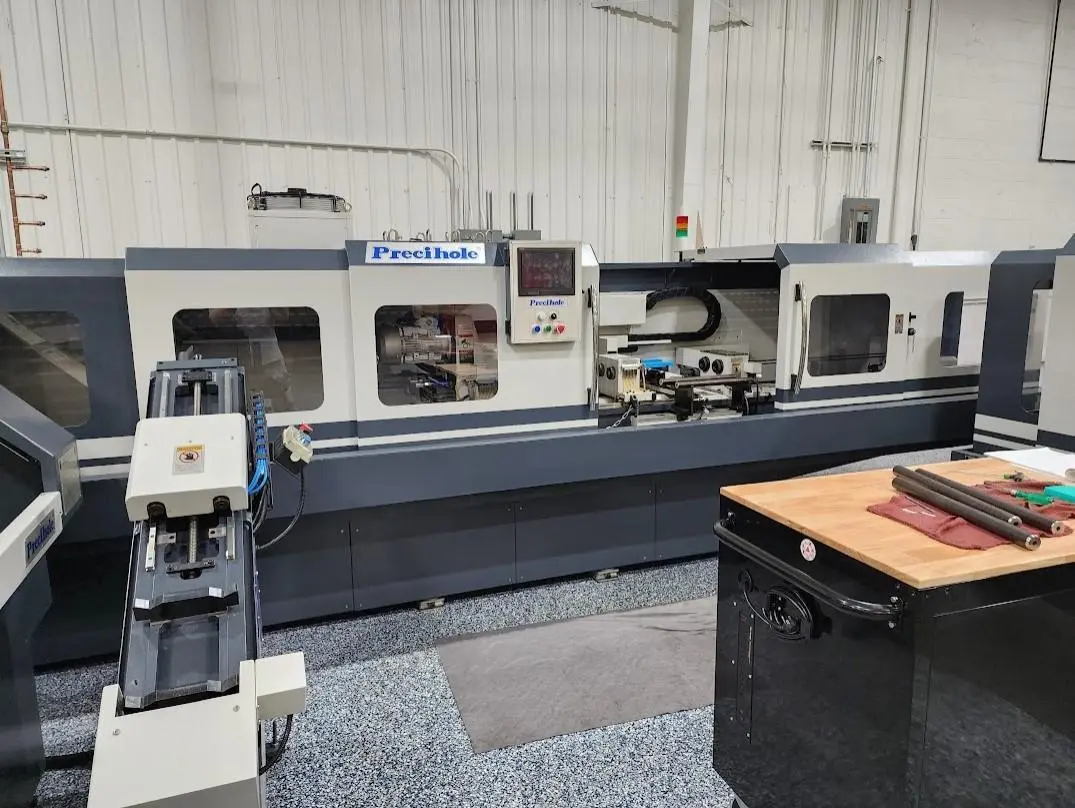

2021 Precihole PRVN12 Twin Spindle Reaming Machine w/ Automation - Brand New!
Precihole PRVN 12/2-600 Twin Spnidle Reaming Machine with Automation
New: 2021
Specifications:
Reaming Diameter Range 0.15" - 0.5"
Number Of Spindles 2
Maximum Reaming Depth 24"/40"/48"/60"
Barrel Od Range 0.47" - 2.16"
Barrel Clamping System 3-Jaw Chuck
Maximum Component Weight 66 Lbs.
Rifling Feed Range 0 - 20 IPM
Power Per Spindle 2 HP
Spindle Speeds 10 - 1000 RPM
Coolant Tank Capacity 300 Gallons
Supply Voltage 460v 3ph 60hz
Overall Weight (Approx) 7,300 Lbs
Equipped With:
Mitsubishi / Siemens Touch Screen PLC Control
Ballscrews With Servo Drives For Linear Motion
Special Quick Clamp System For Reamer Tube
Chiller Unit (Dip Type), Tube Steadies, Auto Lubrication
Automation For Reamer Insertion And Return
Hydraulic Cone Arrangement For Barrel Blank Clamping
High Pressure Coolant With 10 Micron Filtration
*****Robot And Automation Ready*****
***Brand New Machine, Installed But Never Used***
