2014 TOSHIBA BP-150.R22

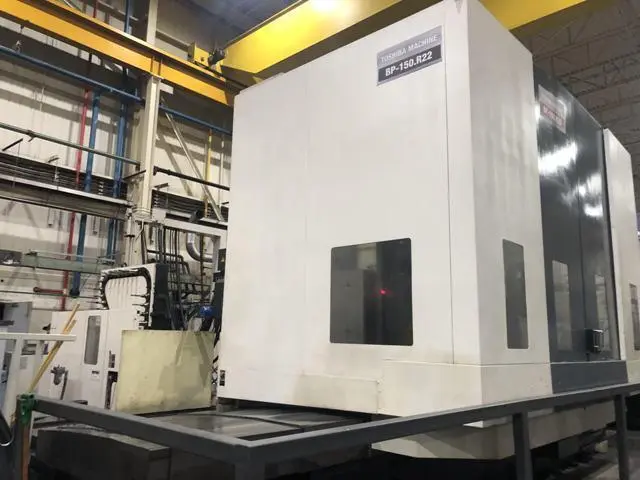

Toshiba BP-150.R22 5.9" Spindle CNC Horizontal Boring Mill
New: 2014

Specifications:
Control: Tosnuc 999
Rotary Table Size 70.8" X 86.6"
Table Load Capacity 44,000 LBS.
Spindle Diameter 5.9"
Spindle Taper #50
Spindle Speed 2500 RPM
Main Motor 50 H.P. A.C.
X - Axis Travel..... 160"
Y - Axis Travel..... 100"
Z - Axis Travel..... 60"
W - Axis Travel..... 28"
B - Axis Travel Contouring .001 (360,000)
Cutting Feed Rate .04- 235 IPM
Rapid Feed Rate 393 IPM
Tool Changer Capacity 60 ATC
Max Tool Dia. 4.9"/9.4"
Max Tool Length 15.75"
Max.tool Weight 55 LBS.
Machine Weight 96,800 LBS.

Equipped with:
 Tosnuc 999 CNC Control
 1200 Meters Part Program Storage
 All Available Manuals
 B-Axis Table (360,000 Positions)
 Chip Air Blow
 Chip Conveyor
 Coolant Through Spindle
 Full Factory Enclosure
