2020 SHARP SV-2414 A-F | Machining Centers, Vertical

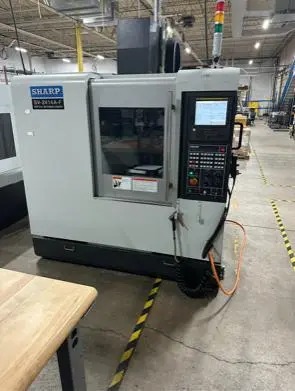

Sharp SV-2414 A-F CNC Vertical Machining Center
New: 2020

GENERAL SPECIFICATIONS
    X Axis Travel: 24”
    Y Axis Travel: 14”
    Z Axis Travel: 18”
    Spindle Nose to Table: 2.8” - 20.9”
    Spindle Center to Column: 16.3”
    Table Area: 27.6” X 13.8”
    Max. Workpiece Weight: 770 LBS
    T-Slot (Number x Width x Pitch): 5” X 0.63” X 2.5”
    Spindle Taper: CAT-40
    Spindle Speed: 8,000 RPM
    Max. Tool Diameter: 3.7”
    Without Adjacent Tool: 5.9”
    Max. Tool Length: 11.8”
    Max. Tool Weight: 15.4 LBS

Equipped With:
Fanuc Oi-MF Plus Control
Cat-40 Taper Spindle w/ 8000 RPM
Rigid Tapping and Carousel Style 16 Tool Capacity Changer

800 hours spindle time!
