2003 MAKINO A51 | Machining Centers, Horizontal

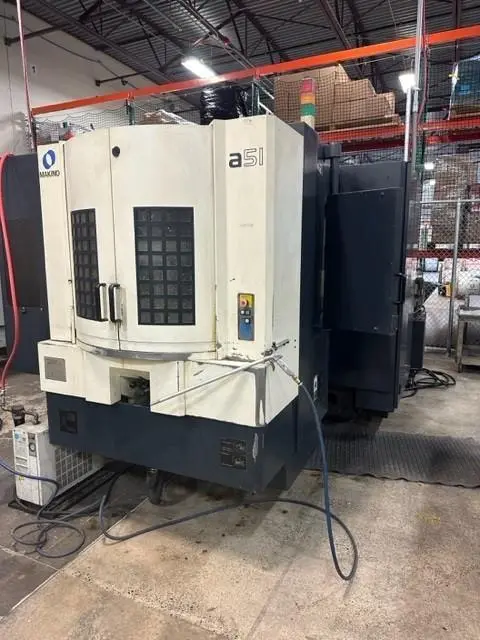

Makino A51 CNC 4-Axis Horizontal Machining Center
New: 2003; s/n 148

Specifications:
 Pallet Size: 15.7” x 15.7”
 Number of Pallets: 2
 Pallet Weight Capacity: 880 Lbs
 Pallet Surface to Spindle Ctr: 3.1” ~ 25.1”
 Pallet Center to Spindle Gage Line: 2.7” ~ 26.3”
 Workpiece Dimensions: 24.8” x 35.4”
 Travels:
  X-Axis: 22”
  Y-Axis: 22”
  Z-Axis: 23.6”
  B-Axis: 0.001 Indexing
 Rapid Traverse Rates X,Y,Z: 1968 IPM
 Rapid Traverse Rates B-Axis: 1574 IPM
 Cutting Feed Rate: 630 IPM
 Spindle Speed: 12,000 RPM
 Spindle Taper: CT40
 Main Motor: 25 HP
 Automatic Tool Changer: 60 ATC
 Tool Diameter: 3.5” / 6.7”
 Tool Weight: 26.5 Lbs
 Tool Change Time: 1.2 Seconds
 Machine Weight: 18,880 Lbs

Equipped With:
 Pro 3 CNC Control
 1000 PSI Coolant Thru Spindle
 Bal Screw Core Cooling
 Full 4th Axis N/C Rotary Table
 Rigid Tapping
 Tool Life Monitoring Function
 GI.3 High Precision Contour Control Software
 All Available Manuals
 Chip Removal System
 Spindle Chiller
 Transformer
