2017 MATSUURA H PLUS 500 | Machining Centers, Horizontal

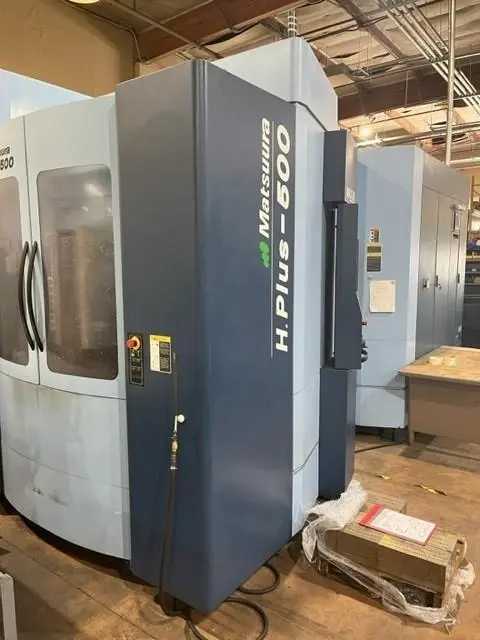

Matsuura H Plus 500 PC2 CNC Horizontal Machining Center
New: 2016; installed 2017

Specifications:
 Number of Axes: 4
 Pallet Size: 20" x 20"
 Pallet Capacity: 1650 Lbs
 Pallet Indexing: 360 deg
 Travels
  X-Axis: 31.49"
  Y-Axis: 31.49"
  Z-Axis: 31.49"
 Rapid Feedrate: 2362 IPM
 Spindle Motor: 40 HP
 Spindle Speed: 15,000 RPM
 Spindle Taper: CAT 50
 Tool Changer: 245 ATC

Equipped With:
 Fanuc 31i CNC Control
 CT50 Big Plus 15k RPM Spindle
 245 Tools on 245 Base ATC
 Full 4th Axis
 Chip Conveyor
 Renishaw NC4
 Tool Setter
 Through Spindle Coolant
 Cooljet 1000 PSI
