Sharp SV-2414 A-F CNC Vertical Machining Center - New 2020!

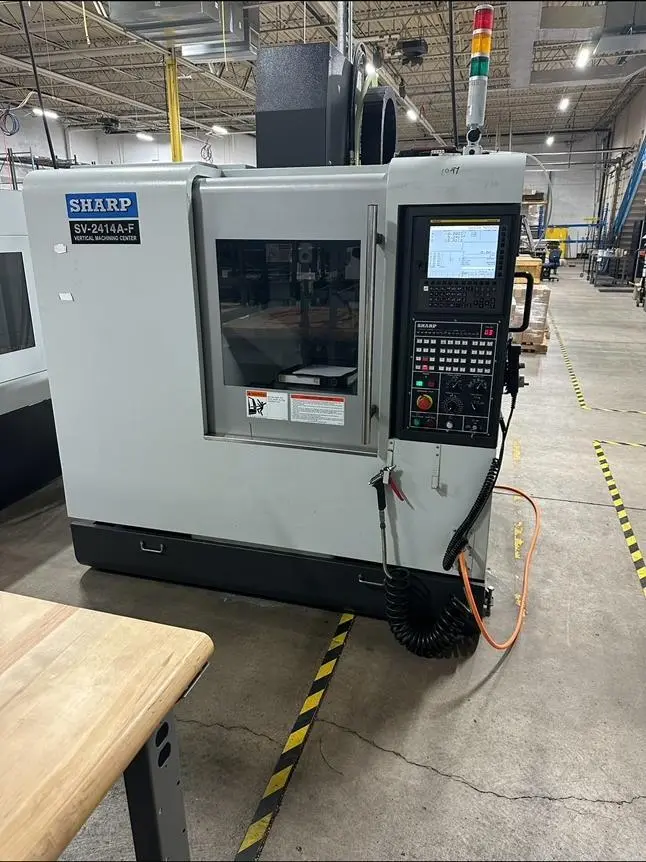

Sharp SV-2414 A-F CNC Vertical Machining Center
New: 2019; Installed 2020
GENERAL SPECIFICATIONS
X Axis Travel: 24”
Y Axis Travel: 14”
Z Axis Travel: 18”
Spindle Nose to Table: 2.8” - 20.9”
Spindle Center to Column: 16.3”
Table Area: 27.6” X 13.8”
Max. Workpiece Weight: 770 LBS
T-Slot (Number x Width x Pitch): 5” X 0.63” X 2.5”
Spindle Taper: CAT-40
Spindle Speed: 8,000 RPM
Max. Tool Diameter: 3.7”
Without Adjacent Tool: 5.9”
Max. Tool Length: 11.8”
Max. Tool Weight: 15.4 LBS
Equipped With:
Fanuc Oi-MF Plus Control
Cat-40 Taper Spindle w/ 8000 RPM
Rigid Tapping and Carousel Style 16 Tool Capacity Changer
400 hours spindle time!
